High power stepper motor driver software expansion for STM32Cube

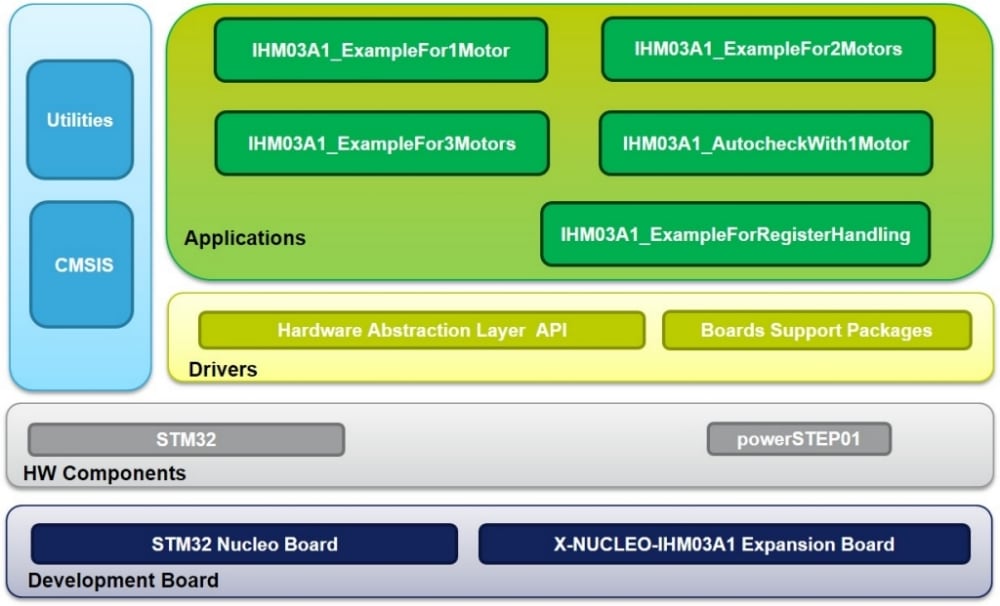

The X-CUBE-SPN3 is an expansion software package for STM32Cube. The software runs on the STM32 and includes driver recognition for the powerSTEP01 device. The expansion is built on STM32Cube software technology to ease portability across different STM32 microcontrollers. It is compatible with the NUCLEO-F401RE, NUCLEO-F030R8, NUCLEO-F334R8 and NUCLEO-L053R8 boards connected to one, two or three X-NUCLEO-IHM03A1 STM32 expansion boards.

The software comes with a sample implementation of the drivers to control one stepper motor.

The expansion is built on STM32Cube software technology to ease portability across different STM32 microcontrollers. Information regarding STM32Cube is available on www.st.com at http://www.st.com/stm32cube.

Key Features

  • Complete middleware to build applications using the powerSTEP01 device
  • Sample, single stepper motor control application for a X-NUCLEO-IHM03A1 board when plugged to NUCLEO-F401RE, NUCLEO-F030R8, NUCLEO-F334R8 or NUCLEO-L053R8 board
  • Easy portability across different MCU families, thanks to STM32Cube
  • Free, user-friendly license terms


×

Resources

Technical Documentation

Product Specifications
Description Version Size
High power stepper motor driver software expansion for STM32Cube 3.0 216 KB
User Manuals
Description Version Size
Development checklist for STM32Cube Expansion Packages 1.0 283 KB
Development guidelines for STM32Cube Expansion Packages 1.0 485 KB
Getting started with the X-CUBE-SPN3 high power stepper motor driver software expansion for STM32Cube 2.0 1 MB

Publications and Collaterals

Brochures
Description Version Size
STM32 Open Development Environment Brochure 15.10 4 MB

Legal

License Agreement
Description Version Size
SOFTWARE LICENSE AGREEMENT ("Agreement") 4.8 122 KB

Tools and Software

Ecosystems
STM32 Open Development Environment
Embedded Software
MCUs Embedded Software

Get Software

Part Number Software Version Marketing Status Supplier Order from ST
X-CUBE-SPN3 1.5.0 Active ST
