Evaluation board with STM32F407IG MCU

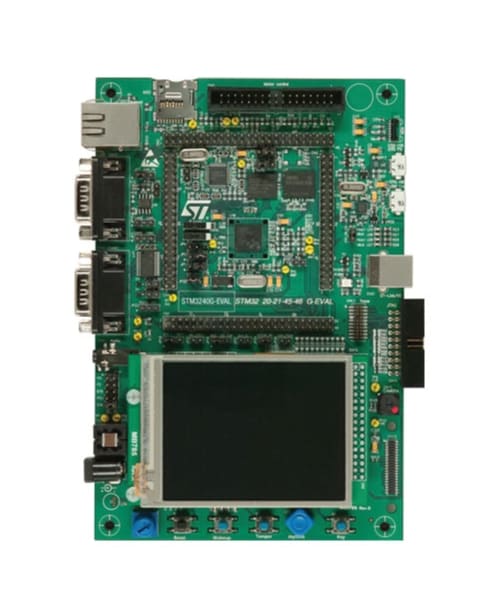

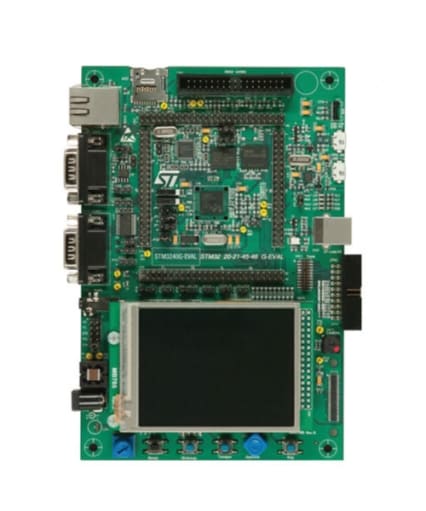

The STM3240G-EVAL evaluation board is a complete demonstration and development platform for the STM32F407IGH6 high-performance 32-bit microcontroller with ARM®Cortex®-M4F processor.

The full range of hardware features on the board helps users to evaluate all the peripherals (USB-OTG HS, USB-OTG FS, Ethernet, motor-control, CAN, microSD™-card, smartcard, USART, audio-DAC, RS-232, IrDA (up to board MB786 C-07), SRAM, ST-MEMS, EEPROM and others) and to develop applications.

The in-circuit ST-LINK/V2 tool can easily be used for JTAG and SWD interface debugging and programming.

Key Features

  • STM32F407IGH6 microcontroller
  • 16-Mbit SRAM
  • microSD™ memory-card slot (card provided)
  • Boot from user Flash memory, system memory or SRAM
  • ISO/IEC 14443 smartcard Type-A and Type-B support
  • I2 C-bus interface for compatible 64-Kbit EEPROMs, ST MEMSs and I/O expanders
  • IEEE 802.3-2002-compliant Ethernet connector
  • Two CAN-2.0 A/B channels on the same D-subminiature connector
  • RS-232 communications
  • IrDA transceiver (up to board version MB786 C-07)
  • USB-OTG (HS and FS) ports with Micro-AB connectors
  • Induction-motor control connector
  • I2 S audio DAC, stereo audio jack for headset
  • 3.2" 240x320 TFT color LCD with touch screen
  • 4 colored LEDs
  • Camera module and extension connector for ST-camera plug-in
  • Joystick with 4-direction control and selector
  • Reset, wakeup, tamper and user buttons
  • RTC with backup battery
  • Extension connector for daughterboard or wire-wrap board
  • JTAG, SW and trace debug support
  • Embedded ST-LINK/V2
  • Five options for 5-V power supply: power jack, USB-FS connector, USB-HS connector, via ST-LINK/V2 or daughterboard

画像

×

リソース

技術文書

製品スペック
Description バージョン サイズ
DB1430 DB1430: Evaluation board with STM32F407IGH6 MCU 2.0 205 KB
Technical Notes & Articles
Description バージョン サイズ
TN1235 TN1235: Overview of the ST-LINK embedded in STM32 MCU Nucleo, Discovery Kits and Eval Boards 1.0 155 KB
ユーザマニュアル
Description バージョン サイズ
UM1461 UM1461: STM3240G-EVAL evaluation board 5.0 1 MB

プレゼンテーション & トレーニング資料

プレゼンテーション
Description バージョン サイズ
STM32 PMSM FOC SDK Getting Started 1.6 5 MB

ハードウェアリソース

Board Manufacturing Specifications
Description バージョン サイズ
STM324xG-EVAL gerber files 2.1 2 MB
Bill of Materials
Description バージョン サイズ
STM324xG-EVAL BOM 3.0 6 KB
Schematic Pack
Description バージョン サイズ
STM324xG-EVAL schematics 2.0 2 MB

Publications and Collaterals

フライヤー
Description バージョン サイズ
STM32 for makers Releasing your creativity 16.2 545 KB
パンフレット
Description バージョン サイズ
STM32 32-bit MCU family - Leading supplier of ARM® Cortex®-M microcontrollers 17.02 1 MB

法務

ライセンス契約
Description バージョン サイズ
Evaluation products license agreement 1.4 128 KB
Open Reference Material License Agreement v5 42 KB

ツール & ソフトウェア

開発ツール・ハードウェア
Software Development Tools
ソフトウェア製品
MCUs Embedded Software
サポート & コミュニティ


サンプル & 購入

製品型番 Marketing Status Unit Price (US$) * 数量 Specific features ECCN (EU) ECCN (US) Country of Origin More info Order from ST Order from Distributors
STM3240G-EVAL Active 328.11 1 - NEC 5A991B1 - MORE INFO 直接購入 買い物かごに追加 DISTRIBUTOR AVAILABILITY
test

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

品質 & 信頼性

製品型番 Marketing Status RoHS Compliance Grade Material Declaration**
STM3240G-EVAL アクティブEcopack1
test

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

×
