A balanced view of MEMS technology: benefits and challenges
Micro-electromechanical systems (MEMS) have reshaped the landscape of sensor and actuator technology, enabling functionality that was once impractical or impossible with traditional macroscopic components. By integrating mechanical structures and electronics at a microscopic scale, MEMS devices are now central to innovation in industrial automation, automotive systems, and personal electronics. However, like any advanced technology, MEMS presents a specific set of trade-offs that engineers must navigate.
A balanced analysis of MEMS features is essential for system architects and design engineers to make informed decisions. This article provides a detailed breakdown of the benefits of MEMS technology and its associated challenges, exploring both the key strengths that drive adoption and the inherent limitations that require careful design consideration.
The advantages of MEMS technology
The widespread integration of MEMS across demanding industries is driven by a compelling set of benefits. These advantages originate from their unique micro-scale fabrication and integrated design, offering performance and efficiency that conventional components cannot match.

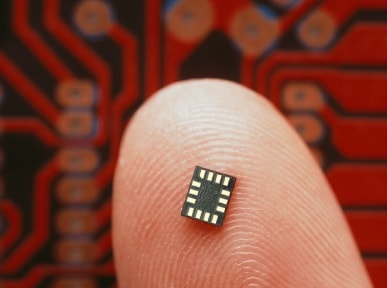

One of the most significant benefits of MEMS is their exceptionally small size. Fabricated using semiconductor processes, these devices can be scaled down to the micrometer level. This extreme miniaturization enables seamless integration into space-constrained products, such as compact industrial equipment, smart wearables, and in-vehicle monitoring systems.
A single MEMS chip can house multiple sensors and the required processing circuitry, creating a compact system-on-chip (SoC) that reduces overall product footprint, weight, and bill of materials (BOM). For example, our inertial modules combine accelerometers and gyroscopes in one package, delivering multi-axis motion sensing in a fraction of the space required by discrete solutions.
Despite their miniature scale, MEMS sensors offer remarkable performance, including high sensitivity, precision, and long-term stability. The photolithographic processes enable the creation of highly controlled and repeatable mechanical structures. This precision allows MEMS devices like our industrial-grade accelerometers, IMUs and pressure sensors, to detect subtle changes in physical parameters such as inclination, vibration, and shock. Furthermore, because they are often hermetically sealed in robust packages, MEMS devices exhibit excellent reliability. They can be designed to operate in harsh industrial environments with wide temperature ranges and high shock and vibration levels, ensuring consistent performance over an extended operational lifetime.
Building on this robust mechanical foundation, the integration of artificial intelligence (AI) algorithms directly into ST MEMS is transforming how systems interact with the physical world. By embedding AI technology at the edge, the latest generation of sensors can collect, process, and transmit only meaningful information in real time, significantly reducing data-transfer volumes and offloading network and host processing for lower power consumption and more sustainable system architectures.

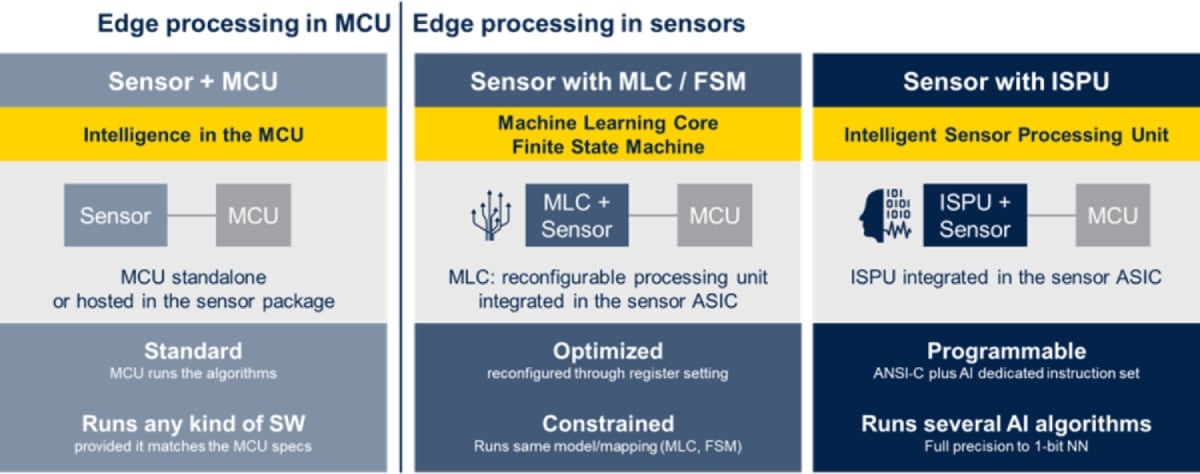

ST offers multiple in-sensor processing options, including sensors with an embedded Machine Learning Core (MLC) and devices featuring an Intelligent Sensor Processing Unit (ISPU). These AI-enabled inertial modules are increasingly adopted not only in industrial and infrastructure applications, but also across the automotive market, where they support advanced safety, chassis control, and in-cabin functions that demand high performance, intelligence, and automotive-grade reliability.
The small mass and dimensions of MEMS devices directly translate to low power requirements. Actuating microscopic mechanical elements consumes far less energy than moving larger, conventional components. This characteristic is a critical design parameter for battery-powered devices, especially within the internet of things (IoT) ecosystem. Low-power MEMS sensors can operate for years on a single small battery, enabling the deployment of remote and autonomous monitoring systems for predictive maintenance, asset tracking, and environmental sensing. This advantage is a key enabler for long-term, distributed sensing networks where power efficiency is paramount.
MEMS technology leverages the highly mature and scalable manufacturing processes of the semiconductor industry. This allows for batch fabrication, where thousands or even millions of devices are produced simultaneously on a single silicon wafer. The resulting high-volume production leads to a significantly lower cost-per-unit compared to the precision machining and assembly required for traditional sensors. This cost-efficiency has made it feasible to incorporate sophisticated sensing capabilities into mass-market consumer products and disposable medical devices, democratizing access to advanced technology and enabling new business models.
Thanks to its Integrated Device Manufacturer (IDM) model, ST maintains complete control over the entire supply chain, from initial research and silicon fabrication to final testing and packaging. This end-to-end ownership, supported by multiple state-of-the-art front-end and back-end production facilities, allows ST to offer superior process optimization, consistent quality, and a highly secure supply for demanding industrial, automotive, and consumer applications.
The challenges associated with MEMS technology
While the advantages of MEMS are significant, engineers must also consider the inherent limitations and design challenges. Acknowledging these constraints is crucial for successful application design, integration, and manufacturing.
Although batch fabrication drives down per-unit costs at volume, the initial setup for MEMS manufacturing is a complex and capital-intensive process. Developing a novel MEMS device requires sophisticated design, finite element analysis (FEA) simulation, and extensive process development. The fabrication itself involves a specialized, multi-step process flow that includes deposition, lithography, and selective etching, all performed in costly cleanroom facilities. This complexity creates a barrier to entry and can make low-volume or highly customized MEMS production economically unviable.
To mitigate these barriers, ST’s Integrated Device Manufacturer (IDM) couples R&D with our internal manufacturing operations. This vertical integration streamlines the transition from complex design to physical silicon, using proprietary processes to accelerate industrialization. By leveraging our established front-end and back-end infrastructure, we can more effectively manage initial costs, ensuring a faster time-to-market and a secure, high-volume ramp-up for demanding automotive and industrial applications.
The microscopic mechanical structures that give MEMS their sensitivity can also be a point of vulnerability. These delicate elements are susceptible to damage from excessive physical shock, contamination from particulates or moisture, and stiction, an issue where micro-structures adhere to each other due to surface forces. Consequently, packaging is one of the most critical and challenging aspects of MEMS design. The package must protect the fragile device from the external environment while simultaneously allowing it to interact with the physical quantity it is designed to measure (e.g. pressure, vibrations).
To address these challenges, ST’s MEMS packaging strategies combine robust mechanical protection with controlled access to the measurand. Hermetically or near-hermetically sealed packages, cavity and over-molded designs, and dedicated environmental barriers reduce the risks of shock, contamination, and moisture ingress, while carefully managing internal stress to preserve sensor performance over lifetime.
Depending on the application, ST adopts several solutions, including plastic land grid array (LGA) packages, ceramic and metal–ceramic packages for high-reliability and automotive and industrial use, and specialized package designs for pressure sensors (such as gel-filled or oil-isolated structures and top- or bottom-port configurations).
Integrating a MEMS sensor with its corresponding control electronics (ASIC) adds another layer of complexity. Signal integrity, thermal management, and minimizing noise coupling must all be carefully managed within a compact, co-packaged system. Furthermore, inherent process variability in manufacturing can lead to slight performance differences between individual devices from the same wafer. To meet datasheet specifications for high-accuracy applications, each ST MEMS sensor requires individual testing and calibration to compensate for process-induced variations. This calibration step is key to offering reliable sensors to the market.
Conclusion: a balanced perspective on MEMS
When evaluating the benefits and challenges of MEMS, it is clear that the technology offers a transformative combination of miniaturization, performance, low power consumption, and cost-effectiveness. These advantages have made them indispensable in modern technology, enabling a new generation of devices. However, the challenges associated with MEMS technology, including design and manufacturing complexity, and packaging challenges, demand careful consideration during the product development and system integration phases.
By weighing the advantages against the limitations, and leveraging ST’s MEMS technology, engineers can more easily design advanced, efficient, and reliable systems for a wide array of industrial, automotive, and consumer applications.
