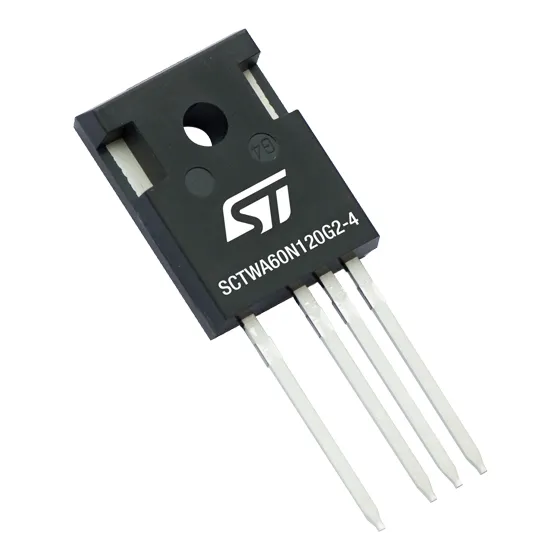

Silicon-carbide 1200 V Power MOSFET in an HiP247-4 package


Optimum trade-off between conduction and switching loss

This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 2nd generation SiC MOSFET technology. SCTWA60N120G2-4 features remarkably low on-resistance per unit area and very good switching performance. The variation of switching loss is almost independent of junction temperature.

Key features

  • Very fast and robust intrinsic body diode
  • Extremely low gate charge and input capacitance
  • Very high operating junction temperature capability (TJ = 200 °C)
  • Source sensing pin for increased efficiency

Application examples

ups Switching mode power supply
dc-dc DC-DC converters
industrial motor control Industrial motor control

Recommended resources

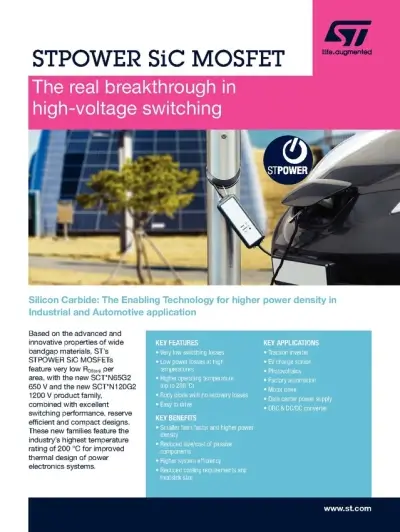

Silicon carbide technology enables higher power density in Industrial and Automotive applications

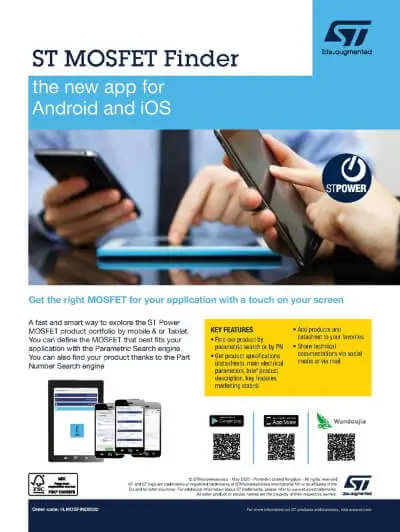

mosfet finder app
