Designed for use in automotive applications, these double-channel, high-side drivers feature a wide input voltage range of 4 to 28 V, making them suitable for use with a variety of power sources.
Embedding advanced protection features, these VIPower switches also feature a diagnostic output pin that provides information on the status of the load, such as open load or short circuit conditions.

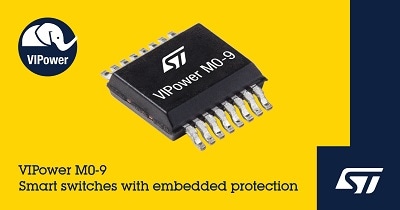

Housed in a compact PowerSSO-16 package to ensure excellent thermal performance, the VND9008AJ, VND9012AJ and VND9025AJ are tailored for different loads, featuring typical on-resistance values per channel of 9.4 mΩ, 12 mΩ, and 25 mΩ, respectively.
- AEC-Q100 qualified
- Double-channel, high-side load control with 4.6 A, 4.75 A and 2.5 A current, respectively
- Wide input voltage range of 4 to 28 V, suitable for use with a variety of power sources
- Advanced protection features, including over-temperature protection, over-current protection, and under-voltage lockout
- Diagnostic output pin provides information on the status of the load, such as open load or short circuit conditions
- Compact PowerSSO-16 package provides excellent thermal performance and high-power density
EV-VND9008AJ, EV-VND9012AJ and EV-VND9025AJ boards
These EV-VND9008AJ, EV-VND9012AJ and EV-VND9025AJ evaluation boards provides an easy way to connect the VND9008AJ, VND9012AJ and VND9025AJ double-channel high-side driver into an existing system.
This ready-to-use boards enables designers to directly connect the load, power supply and microcontroller without any additional effort for external component design and connection.
TwisterSIM: dynamic electro-thermal simulator for VIPower devices
A unique electro-thermal simulator that shortens the design cycle by enabling complex engineering evaluation. TwisterSIM includes an interactive selector for finding the suitable HSDs in few clicks based on load compatibility; fault condition impact analysis; diagnostic behavior analysis dynamic thermal performance, and more.
Scalable, feature-rich automotive high-side drivers leveraging advanced power technology
STMicroelectronics has released single-, double-, and four-channel automotive high side drivers in a common PowerSSO-16 package style, with pin assignments that simplify scaling circuit designs to add more driver channels....
VIPower M0-9: the latest generation of protected high-side drivers
Discover the key features and benefits of our latest generation of protected high-side drivers. Our brochure will help you find the best solution for your application.
