Product overview
Description

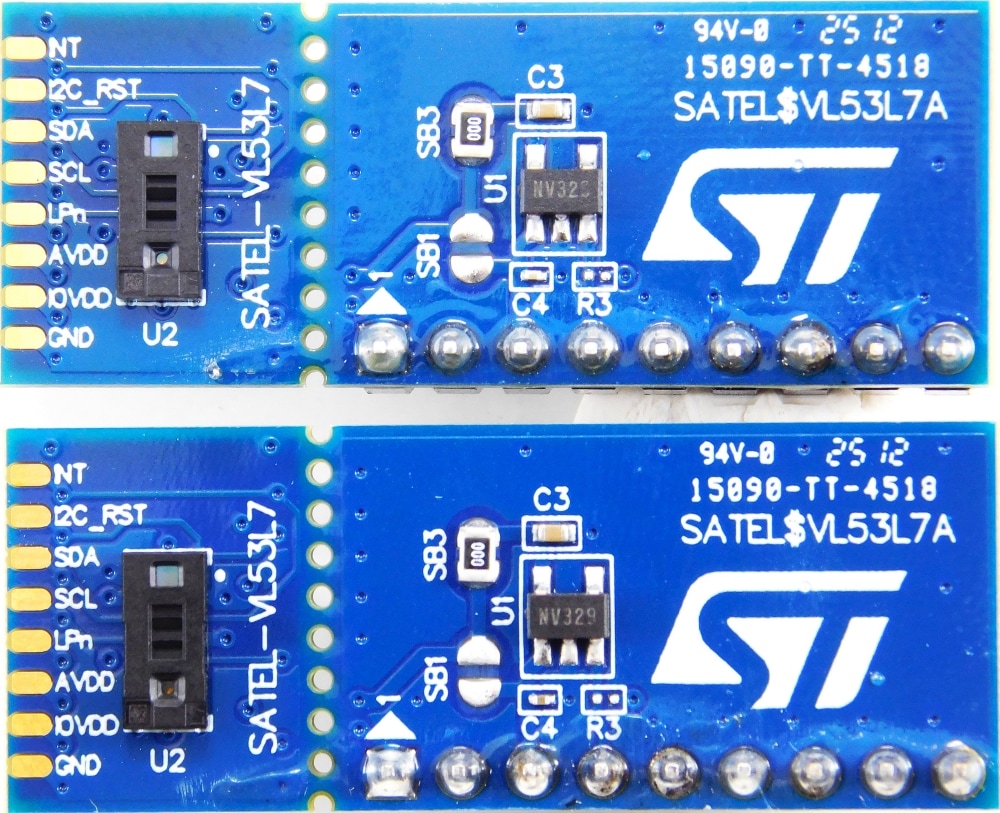

The SATEL-VL53L7 package includes two breakout boards, which can be easily integrated into the customer's devices.
The PCB section that embeds the VL53L7 series Time-of-Flight sensor module is perforated. The developers can then break off the mini-PCB and use it in a 3.3 V supply application via flying wires.
The breakout boards support two products, VL53L7CX and VL53L7CH.
The VL53L7CX is an 8x8 multizone, ToF ranging sensor. Based on STMicroelectronics FlightSense technology, the sensor is designed to provide accurate ranging up to 350 cm with a 90° diagonal FoV.
The VL53L7CH is the perfect Time-of-Flight sensor enabling AI applications, with ultrawide 90° diagonal FoV and low-power consumption. The compact and normalized histogram (CNH) innovative data output is specially designed for artificial intelligence (AI) applications requiring multizone raw data from a high-performance multizone ToF sensor.
This makes it easier to integrate the SATEL-VL53L7 breakout boards into the development and evaluation devices, thanks to their small size.
-
All features
- Breakout boards based on the VL53L7 series for STM32 Nucleo
- VL53L7CX Time-of-Flight (ToF) 8x8 multizone ranging sensor with 90 degrees FoV
- VL53L7CH Artificial intelligence enabler, Time-of-Flight (ToF) 8x8 multizone sensor with 90 degrees FoV
- Divisible board that can be used as a mini-PCB breakout board, easy to integrate into the customer's device
- Two breakout boards available in the package
- Compatible with X-NUCLEO-53L7A1
- Breakout boards based on the VL53L7 series for STM32 Nucleo
