SATEL-VL53L7CX

Active
Design Win

Breakout board based on the VL53L7CX Time-of-Flight 8x8 multizone ranging sensor with 90 degrees FoV

Download databrief Order Direct

Product overview

Description

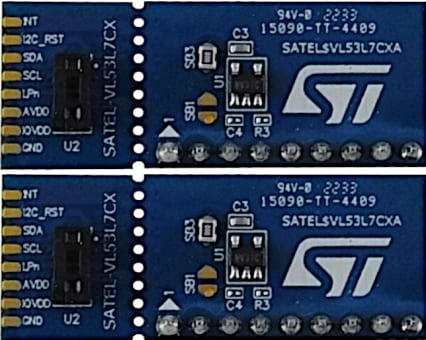

The SATEL-VL53L7CX package includes two breakout boards, which can be easily integrated into the customer's devices.

The PCB section that embeds the VL53L7CX module is perforated. The developers can then break off the mini-PCB and use it in a 3.3 V supply application via flying wires.

The VL53L7CH artificial enabler Time-of-Flight sensor is also supported by the SATEL-VL53L7CX.

This makes it easier to integrate the SATEL-VL53L7CX breakout boards into the development and evaluation devices, thanks to their small size.

  • All features

    • VL53L7CX Time-of-Flight 8x8 multizone ranging sensor with 90° FoV
    • Accurate absolute ranging distance, independent of the reflectance of the target
    • Multizone ranging output with 4x4 or 8x8 separate zones
    • 60° x 60° square FoV (90° diagonal)
    • Divisible board that can be used as a mini-PCB breakout board, easy to integrate into the customer's device
    • Two breakout boards available in the package
    • Compatible with X-NUCLEO-53L7A1

You might also like...

Quality and Reliability

Part Number Marketing Status RoHS Compliance Grade Material Declaration**
SATEL-VL53L7CX
Active
Ecopack2

SATEL-VL53L7CX

Package:

Ecopack2

Material Declaration**:

Marketing Status

Active

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Swipe or click the button to explore more details Don't show this again
Part Number
Marketing Status
Budgetary Price (US$)*/Qty
Order from ST
Order from distributors
Package
Packing Type
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
Supplier
Supplier
Core Product
Board production status
SATEL-VL53L7CX
Available at distributors

Distributor availability of SATEL-VL53L7CX

Distributor Name
Region Stock Min. Order Third party link

Distributor reported inventory date:

No availability of distributors reported, please contact our sales office
ITALY EAR99 NEC

-

VL53L7CXV0GC/1

Stock available

SATEL-VL53L7CX Active

Budgetary Price (US$)*/Qty:
-
Package:
-
Packing Type:
-
RoHS:
-
Country of Origin:
ITALY
ECCN (US):
EAR99
ECCN (EU):
NEC

Part Number:

SATEL-VL53L7CX

Supplier:

-

Core Product:

VL53L7CXV0GC/1

Board production status:

Stock available

Distributor Name

Distributor reported inventory date:

Swipe or click the button to explore more details Don't show this again

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
