Measuring only 37mm by 39mm, the MYC-YF13X CPU Module is a compact System-on-Module (SoM) based on STM32MP135 processor which features 1GHz single ARM Cortex-A7 core. It has onboard DDR3L, Nand Flash or eMMC, and 32Kbit EEPROM.
A variety of peripheral and IO signals are brought out through the 1.0 mm pitch 148-pin stamp-hole (Castellated-Hole) expansion interface. With high reliability, extensive peripheral resources and low cost, the MYC-YF13X can be used in a wide range of applications such as energy power, industrial control, industrial gateway, industrial HMI, and more others.

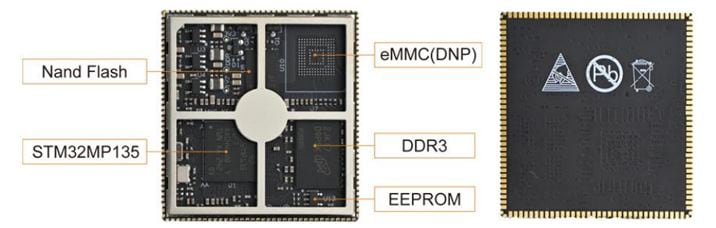

MYC-YF13X CPU Module Top-view and Bottom-view (delivered with shielding cover installed by default)
- 1GHz ST STM32MP135 ARM Cortex-A7 Processor
- 256/512MB DDR3L, 256MB Nand Flash/4GB eMMC, 32Kbit EEPROM
- 1.0mm pitch 148-pin Stamp Hole Expansion Interface
- Supports Running Linux 5.15
