X-LINUX-NFC5

批量生产

STM32 MPU OpenSTLinux software expansion package for RFAL-based NFC applications

获取软件 下载数据摘要
概述
样片和购买
解决方案
文件
工具与软件
质量与可靠性
eDesignSuite
Partner products
Sales Briefcase

产品概述

描述

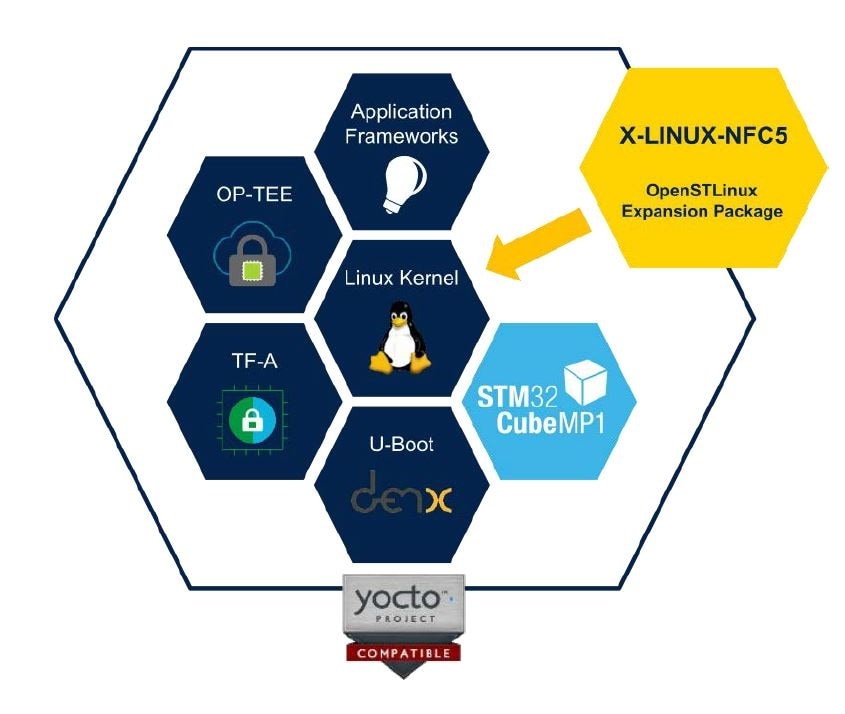

X-LINUX-NFC5 is an STM32 MPU OpenSTLinux software expansion package that runs on the ARM® Cortex® A7-based core of the STM32MP1 microprocessor on the STM32MP157C-DK2 discovery kit to demonstrate RFAL-based NFC applications. The X-LINUX-NFC5 includes sample NFC applications and Radio Frequency Abstraction Library (RFAL) that provides a common interface to make the upper software layers independent of the lower level devices.
This package can be used to develop and evaluate NFC-based applications for different NFC tag type technologies using the RFAL library.
The software package supports all the ST25R3911B lower-layer protocols and some higher layer protocols to abstract RF communication.
An example application is also part of this software package for evaluation. The source can be ported to any Linux platform.
  • 所有功能

    • Linux user space RFAL driver to run NFC-based applications
    • Linux host communications with ST25R3911B
    • RFAL library for all NFC technology type cards
    • Sample application available for X-NUCLEO- NFC05A1 NFC card reader expansion board to detect NFC type tag
    • Ready-to-use binary image (to be flashed on the STM32MP157C-DK2 microSD) and source code for development on Yocto-based OpenSTLinux platform
    • BSD (3-clause) license terms

获取软件

您可能还会喜欢...

All tools & software

    • 产品型号
      状态
      描述
      类型
      供应商

      STM32MP157F-DK2

      批量生产

      Discovery kit with STM32MP157F MPU

      STM32发现工具包 ST
      STM32MP157F-DK2

      描述:

      Discovery kit with STM32MP157F MPU
    • 产品型号
      状态
      描述
      类型
      供应商

      X-NUCLEO-NFC05A1

      批量生产

      用于STM32和STM8 Nucleo的基于ST25R3911B的NFC读卡器扩展板

      STM32 ODE连接硬件 ST
      X-NUCLEO-NFC05A1

      描述:

      用于STM32和STM8 Nucleo的基于ST25R3911B的NFC读卡器扩展板
