产品概述
描述

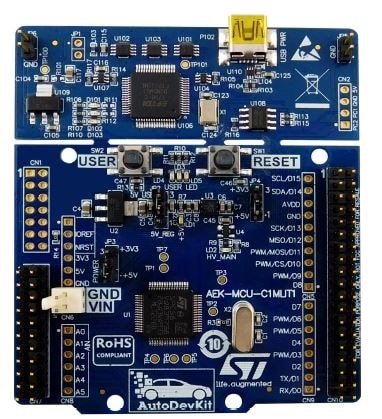

The AEK-MCU-C1MLIT1 board exploits the functionality of SPC582B60E1 Power Architecture® microcontrollers with full access to CPUs, I/O signals and peripherals.
The SPC58 2B Line MCUs are designed to address automotive vehicle body, gateway and industrial oriented applications.
Free ready-to-run application firmware examples are available in SPC5-STUDIO software with AutoDevKit plug-in (STSW-AUTODEVKIT) to support quick evaluation and development.
-
所有功能
- SPC582B60E1 microcontroller: 32-bit z2 core at 80 Mhz CPU, 32-bit Power Architecture® technology CPU, 1 MB Code Flash in eQFP64 package
- On-board USB-JTAG PLS debugger and dedicated optional connector to plug a standalone JTAG debugger
- Extension headers for all the device pins for fast prototyping
- Mini-B USB port
- One user push button and one RESET button
- 3 LEDs for user purposes
- 3 integrated programmers/debuggers
- 1 Reset and 1 Power LED (+5 V)
- 40 MHz Crystal
- RoHS and WEEE compliant
- Part of the AutoDevKit™ initiative
您可能还会喜欢...
特别推荐
全部资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 28 Feb 2020 | 28 Feb 2020 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 28 Feb 2020 | 28 Feb 2020 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 28 Feb 2020 | 28 Feb 2020 |
质量与可靠性
| 产品型号 | Marketing Status | 符合RoHS级别 | WEEE Compliant | 材料声明** |
|---|---|---|---|---|
| AEK-MCU-C1MLIT1 | 批量生产 | Ecopack2 | Yes | |
AEK-MCU-C1MLIT1
Package:
Ecopack2Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
Don't show this again
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 封装 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | 供应商 | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AEK-MCU-C1MLIT1 | | | distributors 无法联系到经销商，请联系我们的销售办事处 | ITALY | 3A991.a.2 | NEC | ST | SPC582B | ST | SPC582B |
AEK-MCU-C1MLIT1 批量生产
Budgetary Price (US$)*/Qty:
-
distributors
无法联系到经销商，请联系我们的销售办事处
封装:
-
包装类型:
-
RoHS:
-
Country of Origin:
ITALY
ECCN (US):
3A991.a.2
ECCN (EU):
NEC
