75 mm x 45 mm and 22.5 mm x 18.5 mm antenna boards package for ST25DV-Discovery kit

下载产品简介

Order from our eStore and our distributors

立即购买
概述
工具与软件
资源
解决方案
质量与可靠性
Sales Briefcase
eDesignSuite
开始
样片和购买
Partner products

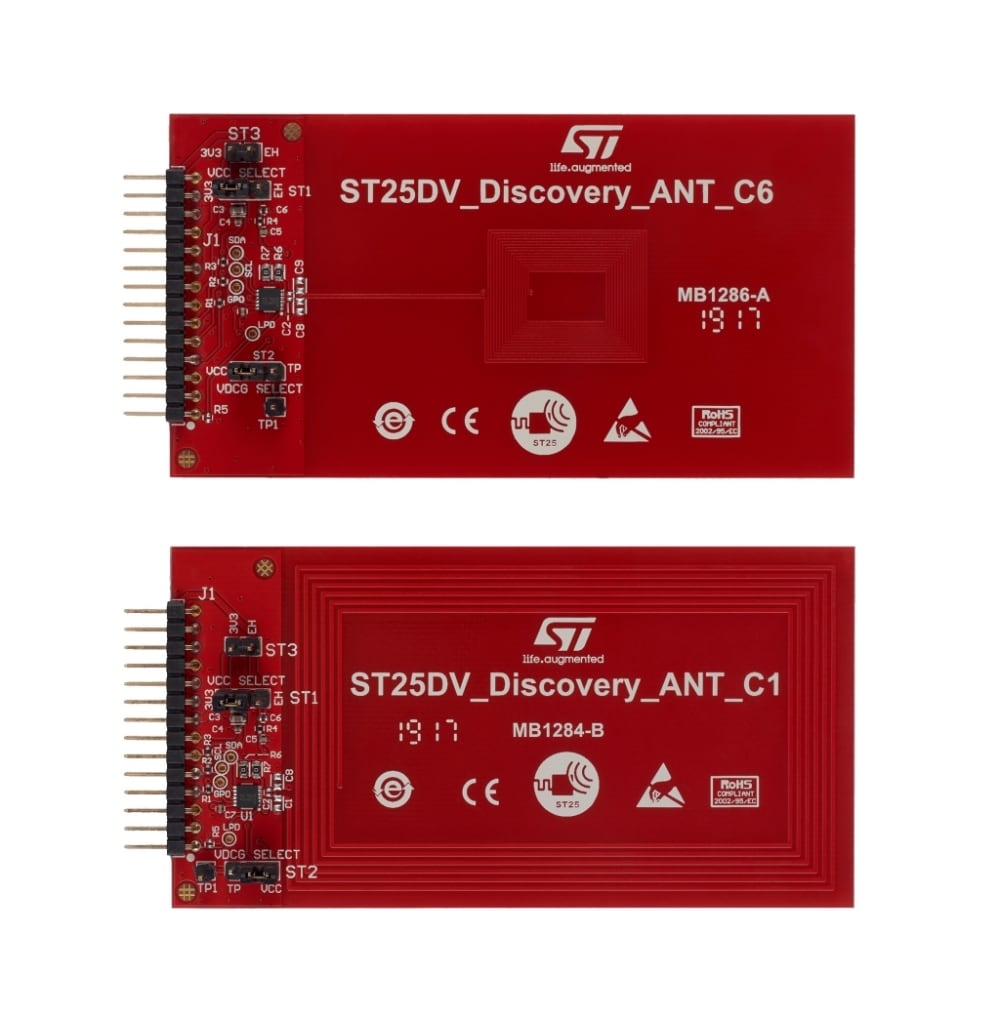

  • The ANT-1-6-ST25DV antenna reference kit is a ready-to-use kit containing two boards, each of them featuring a ST25DV04K Dual Interface EEPROM IC connected to an RF etched antenna on one side, and to an I2C bus on the other side.

    The ANT-1-6-ST25DV antenna kit allows system designers to evaluate the ST25DV04K performance, capabilities, and to get started with their design.
    To demonstrate the energy harvesting function, the ANT-1-6-ST25DV can be used in conjunction with the DEMO-CR95HF-A demonstration board.
    The ANT-1-6-ST25DV PCB files can be downloaded from www.st.com.

    Key Features

    • Ready-to-use printed circuit board (PCB) including:
      • 45 mm x 75 mm (ST25DV_Discovery_ANT_C1) and 18 mm x 24 mm (ST25DV_Discovery_ANT_C6), 13.56 MHz single layer inductive antenna etched on the PCB
      • ST25DV04K dual interface EEPROM
      • Mates with ST25Dx_DISCOVERY_MBOARD connector
      • Energy harvesting output (VOUT) with a 10 nF capacitance filtering circuit
