EVALST-ISOSD61T

批量生产

Evaluation board for ISOSD61 isolated sigma-delta converter

下载数据摘要 Order Direct
概述
Online design
样片和购买
解决方案
文件
CAD资源
工具与软件
质量与可靠性
Partner products
Sales Briefcase

产品概述

描述

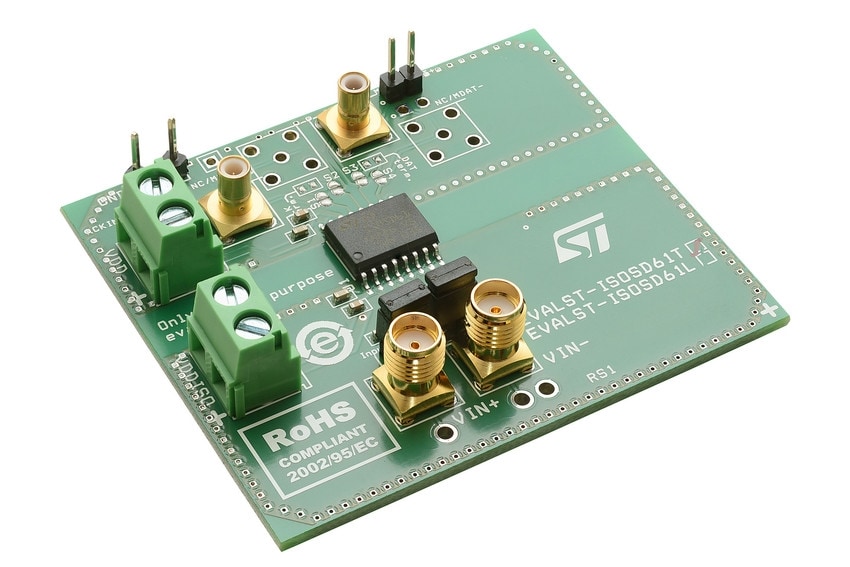

The EVALST-ISOSD61T is a full-featured evaluation board designed to allow the user to evaluate all the features of the ISOSD61 isolated analog-to-digital converter (ADC). The ISOSD61 device is a 1-bit sigma-delta modulator with an output buffer separated from the input interface circuitry by a galvanic isolation barrier. The isolation barrier provides galvanic isolation of up to 6000 VPEAK. When used in combination with a digital filter, the ISOSD61 device can be used to achieve 16-bit analog-to-digital (A/D) conversion with no missing codes.
  • 所有功能

    • 6 kV galvanic isolation
    • 30 kV/µs high common-mode transient immunity
    • 16-bit resolution, no missing codes
    • ±320mV full scale differential input signal range
    • Up to 25 MHz external clock input
    • High SNR (86 dB) and bandwidth (49 kHz)
    • –40°C to +125°C extended industrial temperature range
    • Coaxial and header pins available for flexible access to the inputs and outputs
    • TTL/CMOS digital I/O (ISOSD61)
    • Additional pads for the connection of a shunt current sensor
