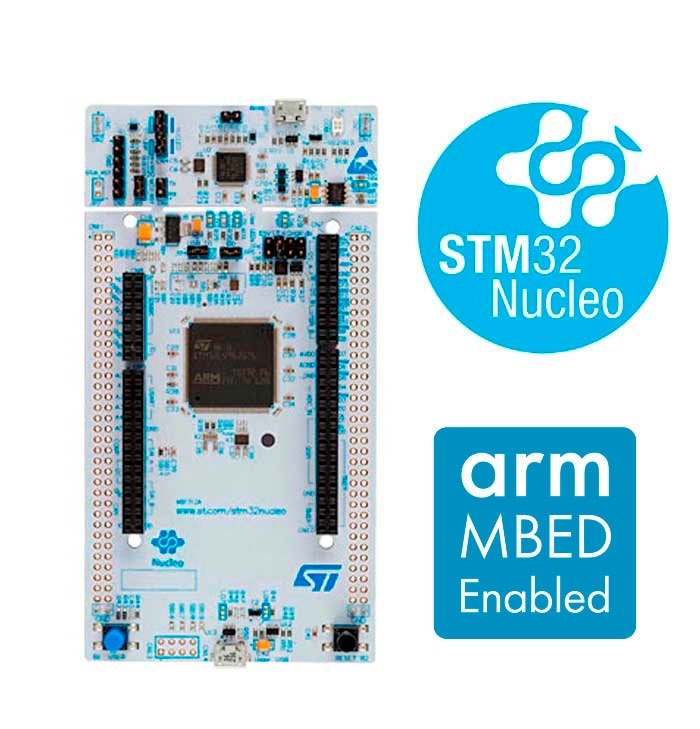

STM32 Nucleo-144 development board with STM32L496ZG MCU, supports Arduino, ST Zio and morpho connectivity

下载产品简介

Order from our eStore and our distributors

立即购买
概述
工具与软件
资源
解决方案
质量与可靠性
Sales Briefcase
eDesignSuite
开始
样片和购买
Partner products
  • The STM32 Nucleo-144 boards provide an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

    The ST Zio connector, which extends the Arduino™ Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields.
    The STM32 Nucleo-144 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.
    The STM32 Nucleo-144 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

    主要特性

    • Common features
      • STM32 microcontroller in LQFP144 package
      • 3 user LEDs
      • 2 user and reset push-buttons
      • 32.768 kHz crystal oscillator
      • Board connectors:SWDST Zio expansion connector including Arduino™ Uno V3ST morpho expansion connector
      • Flexible power-supply options: ST-LINK, USB VBUS or external sources
      • On-board ST-LINK debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port and debug port
      • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
      • Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil® and GCC-based IDEs
    • Board-specific features
      • External or internal SMPS to generate Vcore logic supply
      • Ethernet compliant with IEEE-802.3-2002
      • USB OTG full speed or device only
      • Board connectors:USB with Micro-AB or USB Type-C™Ethernet RJ45
      • Arm® Mbed Enabled™ compliant
