P-NUCLEO-LRWAN3

批量生产

STM32 Nucleo pack LoRa™ LF band sensor and gateway

下载数据摘要

Order from our eStore and our distributors

立即购买
概述
资源
工具与软件
解决方案
eDesignSuite
质量与可靠性
Sales Briefcase
开始
样片和购买
Partner products
  • The P-NUCLEO-LRWAN3 STM32 Nucleo starter pack for LoRa® technology and high-performance (G)FSK/OOK/(G)MSK modulations is a development tool to learn and quickly develop low-power wide-area network (LPWAN) solutions. The pack contains both an LPWAN end-node and its related gateway. It is compatible with various LoRaWAN® network server providers. P-NUCLEO-LRWAN3 is intended for countries granting radio-communications access in frequency bands lower than 500 MHz.

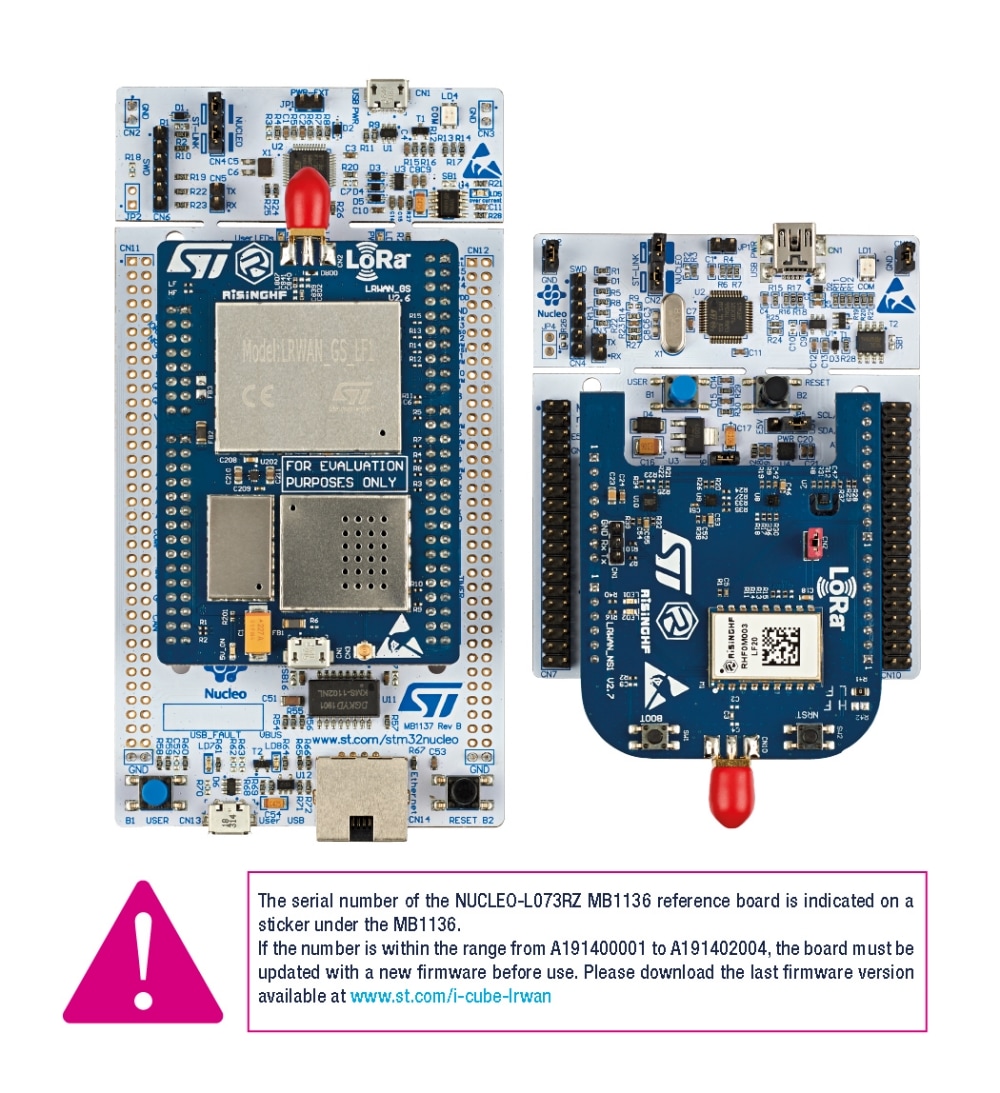

    On the gateway side, the NUCLEO-F746ZG board, based on a high-performance STM32F7 Arm® 32-bit microcontroller, controls a RisingHF ARDUINO® expansion board (LRWAN_GS_LF1) used as a basic LoRaWAN® packet forwarder. In that way, data coming from the development node can directly reach LoRaWAN® network servers.
    On the sensor-node side, the NUCLEO-L073RZ, based on an ultra-low-power STM32L0 Arm® 32-bit microcontroller, controls a RisingHF LRWAN_NS1 ARDUINO® expansion board used as a sensor node.
    The LRWAN_NS1 end-node is an ARDUINO® compatible expansion board. This board is designed by RisingHF around a LoRa® module powered by an STM32L07 device hosting a friendly AT command stack. This makes user development and access to the LoRa® technology easier. In addition, this expansion board features several sensors from STMicroelectronics: accelerometer and gyroscope (LSM6DS3), MEMS pressure (LPS22HB), humidity and temperature (HTS221), and magnetometer (LIS3MDL).

    主要特性

    • NUCLEO-L073RZ development board (from STMicroelectronics)
      • STM32L073RZT6 Arm® Cortex®-M0+ ultra-low-power MCU at 32 MHz with 192-Kbyte Flash memory, 20-Kbyte SRAM and 6-Kbyte data EEPROM
      • 1 user LED
      • 1 user and 1 reset push-buttons
      • 32.768 kHz crystal oscillator
      • On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
      • Board connectorsMini-AB USB connector for the ST-LINKARDUINO® Uno V3 expansion connectorST morpho extension pin headers for full access to all STM32 I/Os
    • NUCLEO-F746ZG development board (from STMicroelectronics)
      • STM32F746ZGT6 Arm® Cortex®-M7 high-performance MCU at 216 MHz with 1-Mbyte Flash memory and 320-Kbyte SRAM
      • 3 user LEDs
      • 1 user and 1 reset push-buttons
      • Ethernet compliant with IEEE-802.3-2002
      • USB OTG full speed or device only
      • 32.768 kHz crystal oscillator
      • On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
      • Board connectorsMicro-AB USB connector for the ST-LINKST Zio expansion connector including ARDUINO® Uno V3ST morpho extension pin headers for full access to all STM32 I/OsUSB with Micro-ABEthernet RJ45
    • LRWAN_NS1 LoRa® LF band (433/470 MHz) sensor expansion board (from RisingHF)
      • RisingHF RHF0M003-LF20 low-power long-range LoRaWAN® module, based on the STM32L071 MCU and Semtech SX1278 transceiverHigh sensitivity down to -137 dBm14 dBm to 20 dBm output power
      • STMicroelectronics HTS221 temperature and humidity sensor
      • STMicroelectronics LPS22HB pressure sensor
      • STMicroelectronics LSM6DS3 accelerometer and gyroscope sensor
      • STMicroelectronics LIS3MDL magnetometer
    • LRWAN_GS_LF1 LoRa® LF band (433/470 MHz) gateway expansion board (from RisingHF)
      • Semtech SX1301/SX1255 LF baseband data concentrator and transceiverAutomatically adaptive to spreading factor from SF12 to SF7 in each of 8 channelsHigh sensitivity down to -140 dBm at 300 bit/s6 dBm output powerSupport LoRaWAN® protocol Class A and Class CSupport Semtech packet forwarderSupport DNS and NTP

样片和购买

产品型号
供货状态
ECCN (US)
Country of Origin
Budgetary Price (US$)*/Qty
从ST订购
从分销商订购
P-NUCLEO-LRWAN3
批量生产
5A991G CHINA 99.0 / 1 立即购买 查看供货情况

...的经销商可用性P-NUCLEO-LRWAN3
