5 kW low voltage high current inverter for industrial motor control applications

下载产品简介

Order from our distributors

查看供货情况
概述
工具与软件
资源
解决方案
质量与可靠性
Sales Briefcase
eDesignSuite
开始
样片和购买
Partner products
  • The STEVAL-CTM009V1 evaluation kit for motor control is designed to demonstrate the capabilities of ST Power MOSFETs based on STripFET™ F7 technology. The 100 V STripFET™ F7 devices (STH31*N10F7) are ideal for low voltage (up to 48 V), high current applications such as forklifts, golf carts and power tool.

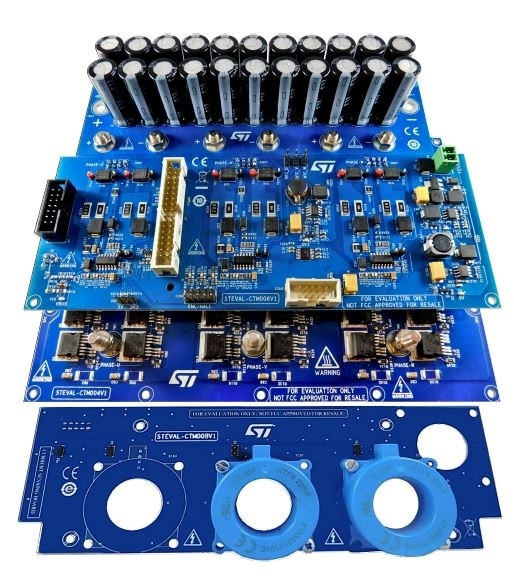

    The STEVAL-CTM009V1 kit is composed of the STEVAL-CTM004V1, STEVAL-CTM005V1, STEVAL-CTM006V1, STEVAL-CTM008V1 boards which have to assembled together to build an inverter power stage for three-phase motors.
    The STEVAL-CTM004V1 power board features an insulated metal substrate (IMS), NTCs for thermal protection and decoupling gate resistors for each power MOSFET. The board mounts ST devices in the H²PAK-6 package.
    The driver stage is an STEVAL-CTM006V1 board with L6491 high current capability gate drivers to drive the power MOSFETs and integrated comparator for protections. The driver board includes the ST motor control connector, so you can interface the STEVAL-CTM009V1 with any ST MCU control board suitable for motor control (not included in the kit).
    The system also has an STEVAL-CTM005V1 bus link capacitor board used to connect the 48 VDC power source (e.g. the battery) to manage the ripple current and an STEVAL-CTM008V1 current sensing board to read the three-phase currents and DC bus current (not assembled) thanks to the on-board ICS. The internal reference for the ICSs can be overridden by providing an external reference voltage.

    主要特性

    • STEVAL-CTM004V1 (power board)
      • insulated metal substrate (IMS)
      • hosts 36 STH310N10F7 or STH315N10F7 power MOSFETs in the H²PAK-6 (6x switch) package
      • Decoupling gate resistors (2.2 Ω)
      • 3-shunt resistors ground referred for current sensing (optional)
      • 3 NTCs for thermal protection
    • STEVAL-CTM005V1 (bulk capacitor board)
      • 22x 270 μF, 100 V through-hole aluminium electrolytic capacitor
    • STEVAL-CTM006V1 (driver board)
      • based on 3x L6491 gate driver with current capability up to 4 A sink/source
      • 34-pin MC connector
      • overcurrent, overtemperature and overvoltage protection
    • STEVAL-CTM008V1 (current sensing board)
      • accurate phase current sensing
      • DC current sensing (ICS not mounted)
      • possibility of overdriving VREF with an external reference voltage

样片和购买

产品型号
核心产品
供货状态
预算价格(US$)
数量
ECCN (US)
Country of Origin
从分销商订购
从ST订购
STEVAL-CTM009V1 STH310N10F7-6, STH315N10F7-6, L6491
批量生产
370 1 EAR99 ITALY 查看供货情况

Distributor availability ofSTEVAL-CTM009V1

代理商名称
地区 库存 最小订购量 Third party link
DIGIKEY WORLDWIDE 1 1 Order Now
AVNET AMERICA 4 0 Order Now
ARROW EUROPE 1 0 Order Now
Farnell Element14 EUROPE 4 1 Order Now

代理商库存报告日期: 2019-10-16

代理商名称

DIGIKEY

库存

1

Min.Order

1

地区

WORLDWIDE Order Now

AVNET

库存

4

Min.Order

0

地区

AMERICA Order Now

ARROW

库存

1

Min.Order

0

地区

EUROPE Order Now

Farnell Element14

库存

4

Min.Order

1

地区

EUROPE Order Now

代理商库存报告日期: 2019-10-16

STEVAL-CTM009V1

核心产品

STH310N10F7-6, STH315N10F7-6, L6491

供货状态

批量生产

单价(US$)

370.0*

Distributor availability ofSTEVAL-CTM009V1

代理商名称
地区 库存 最小订购量 Third party link
DIGIKEY WORLDWIDE 1 1 Order Now
AVNET AMERICA 4 0 Order Now
ARROW EUROPE 1 0 Order Now
Farnell Element14 EUROPE 4 1 Order Now

代理商库存报告日期: 2019-10-16

代理商名称

DIGIKEY

库存

1

Min.Order

1

地区

WORLDWIDE Order Now

AVNET

库存

4

Min.Order

0

地区

AMERICA Order Now

ARROW

库存

1

Min.Order

0

地区

EUROPE Order Now

Farnell Element14

库存

4

Min.Order

1

地区

EUROPE Order Now

代理商库存报告日期: 2019-10-16

单价(US$)

370

数量

1

ECCN (US)

EAR99

Country of Origin

ITALY

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商

适合您的资源

相关应用

家庭电器和专业电器

工业电源及工具

电机控制

00 选择要下载的文档

技术文档

    • 描述 版本 文档大小 操作
      DB3709
      5 kW low voltage high current inverter for industrial motor control applications
      2.0
      2.67 MB
      PDF
      DB3709

      5 kW low voltage high current inverter for industrial motor control applications

    • 描述 版本 文档大小 操作
      UM2458
      5 kW low voltage high current inverter for industrial motor control applications
      1.0
      1.72 MB
      PDF
      UM2458

      5 kW low voltage high current inverter for industrial motor control applications

硬件资源

    • 描述 版本 文档大小 操作
      STEVAL-CTM009V1 GERBER 1.0
      1.95 MB
      ZIP

      STEVAL-CTM009V1 GERBER

    • 描述 版本 文档大小 操作
      STEVAL-CTM009V1 BOM 1.0
      406.06 KB
      PDF

      STEVAL-CTM009V1 BOM

    • 描述 版本 文档大小 操作
      STEVAL-CTM009V1 SCHEMATICs 1.1
      1.04 MB
      ZIP

      STEVAL-CTM009V1 SCHEMATICs

出版刊物和宣传资料

    • 描述 版本 文档大小 操作
      X-NUCLEO expansion boards motor control - Selection guide 1.2
      263.59 KB
      PDF

      X-NUCLEO expansion boards motor control - Selection guide

    • 描述 版本 文档大小 操作
      Products and solutions for Smart industry 3.0
      3.32 MB
      PDF

      Products and solutions for Smart industry

法律

    • 描述 版本 文档大小 操作
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

产品型号 供货状态 封装 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-CTM009V1
批量生产
CARD 工业 Ecopack2 Yes

STEVAL-CTM009V1

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
