STEVAL-IHM032V1

批量生产
Design Win

150 W逆变器,拥有L639x和STGD3HF60HD,用于基于1分流电阻的正弦矢量控制和梯形标量控制

下载数据摘要 Order Direct
概述
样片和购买
解决方案
文件
CAD资源
工具与软件
质量与可靠性
开始
Partner products
Sales Briefcase

产品概述

描述

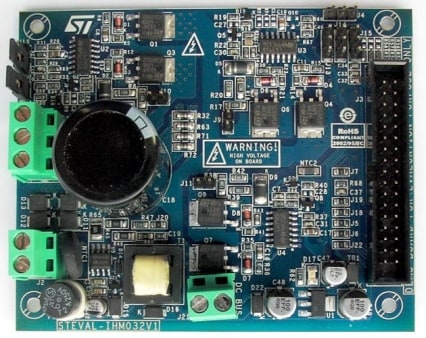

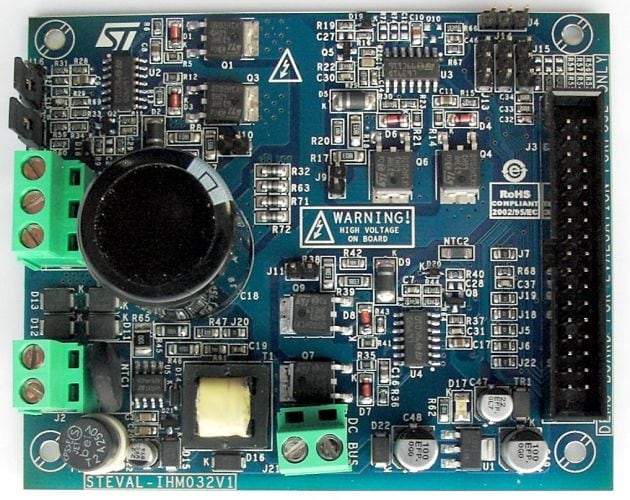

The STEVAL-IHM032V1 demonstration board is a 3-phase inverter designed to perform both the field-oriented control (FOC) of sinusoidal-shaped back-EMF permanent magnet synchronous motors (PMSMs) and trapezoidal control of brushless DC (BLDC) motors with or without sensors, with nominal power up to 150 W.

This flexible, open, high-performance system based on the L639x and STGD3HF60HD is specifically designed to achieve fast and accurate conditioning of the current feedback, thereby matching the requirements typical of high-end applications such as field-oriented motor control.

The board is compatible with 110 and 230 Vac mains, and includes a power supply stage with the VIPer12A-E (in flyback configuration) to generate the +15 V and +3.3 V supply voltage required by the application. Finally, the board can be interfaced through a dedicated connector with the STM3210xx-EVAL (STM32 microcontroller demonstration board), STEVAL-IHM022V1 (high-density, dual motor control demonstration board based on the STM32F103ZE microcontroller), and with the STEVAL-IHM033V1 (control stage based on the STM32F100 microcontroller suitable for motor control).

  • 所有功能

    • Compact size
    • Wide-range input voltage
    • Maximum power up to 150 W at 230 Vac input
    • STGD3HF60HD: 4.5 A, 600 V very fast IGBT
    • Compatibility with other power switches in DPAK packages (the STD5N52U and STGD6NC60HD, for example)
    • AC or DC bus voltage power supply connectors
    • Connector for interfacing with the STM3210xx-EVAL board, STEVAL-IHM022V1, and STEVAL-IHM033V1 with alternate functions (current reference, current limitation/regulation, method selection, current boost)
    • Efficient DC/DC power supply (15 V, 3.3 V)
    • Suitable both for sinusoidal FOC and trapezoidal BLDC drive
    • Single-shunt current reading topology with fast operational amplifier (with offset insertion for bipolar currents)
    • Hardware overcurrent protection with boost capabilities
    • Temperature sensor
    • BEMF-detection network for BLDC drive
    • Current regulation/limitation network for BLDC drive
    • Hall sensor/quadrature encoder inputs
