STEVAL-IKR002V7D

批量生产

SPIRIT1 - Low Data Rate Transceiver - 169 MHz - DAUGHTER BOARD - range extender

下载产品简介
概述
工具与软件
资源
解决方案
质量与可靠性
Sales Briefcase
eDesignSuite
开始
样片和购买
Partner products

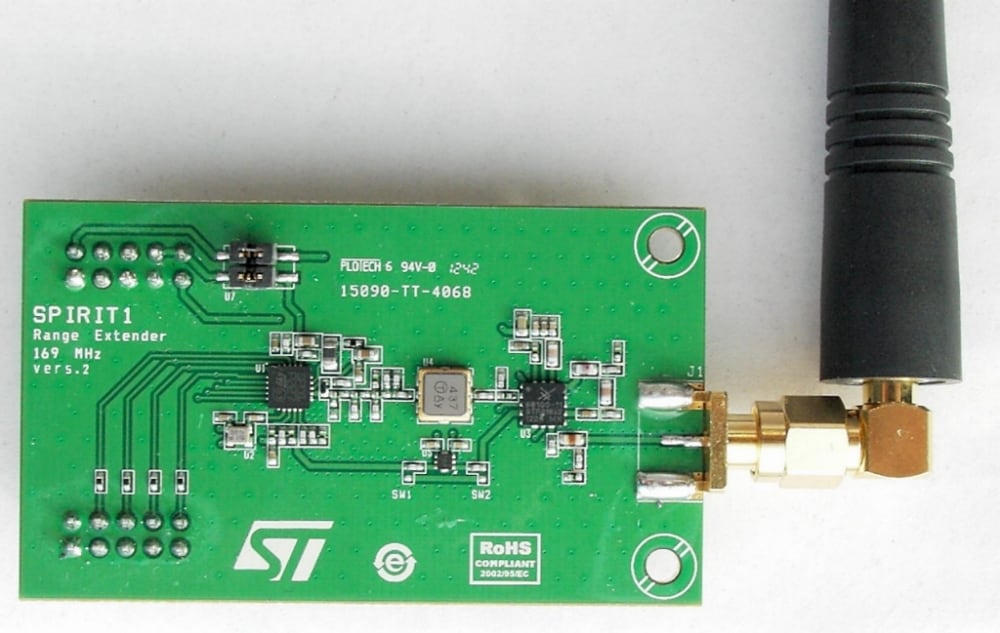

  • The STEVAL-IKR002V7D product evaluation board is based on the SPIRIT1, a very low-power RF transceiver intended for RF wireless applications in the sub 1 GHz frequency band.

    The STEVAL-IKR002V7D also features an on-board external front-end module from Skyworks®(SKY66100-11), which can reach a maximum output power of +27 dBm (500 mW).

    Key Features

    • SPIRIT1 low power sub GHz transceiver in a standalone RF module tuned for 169 MHz, with external Skyworks®front-end module (SKY66100-11)
    • Modulation schemes: 2-FSK, GFSK, MSK, GMSK, OOK, and ASK
    • Programmable air data rate: from 1 to 500 kbps
    • Maximum output power: +27 dBm
    • Excellent receiver sensitivity (-123 dBm)
    • Suitable for wireless M-BUS applications
    • Meets the tight narrow-band system requirements
    • Low duty cycle RX/TX operation mode
    • Automatic acknowledgment, retransmission, and timeout protocol engine
    • AES 128-bit encryption co-processor
    • SPI interface for microcontroller
    • RoHS compliant

样片和购买

产品型号
核心产品
供货状态
预算价格(US$)
数量
ECCN (US)
Country of Origin
从分销商订购
从ST订购
STEVAL-IKR002V7D SPIRIT1
批量生产
227 1 5A992C ITALY 没有经销商,请联系我们的销售办事处

STEVAL-IKR002V7D

核心产品

SPIRIT1

供货状态

批量生产

单价(US$)

227.0*

单价(US$)

227

数量

1

ECCN (US)

5A992C

Country of Origin

ITALY

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商
