STEVAL-ILL061V1

批量生产
储存到myST

High brightness RGB LED array driver with local dimming and diagnostics based on LED1642GW and STM32

下载产品简介

Order from our eStore and our distributors

立即购买
概述
工具与软件
资源
解决方案
质量与可靠性
Sales Briefcase
eDesignSuite
开始
样片和购买
Partner products
快速链接

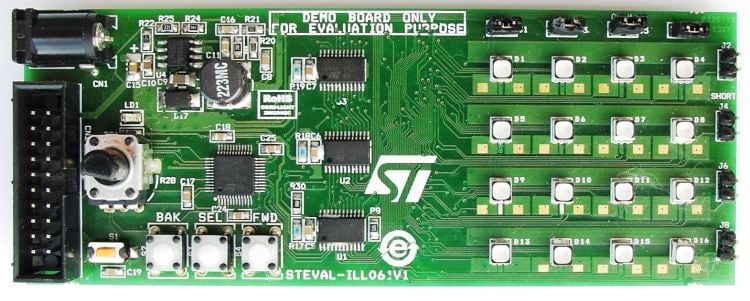

  • The STEVAL-ILL061V1 is a high brightness RGB LED array driver system evaluation board with local dimming and diagnostics based on LED1642GW independent PWM LED driver controlled through an STM32 microcontroller SPI interface.

    An ST L7981 DC-DC converter provides the voltages/power for overall functioning of the board.

    Key Features

    • High brightness 4x4 RGB LED matrix
    • Complete hardware and software package
    • Various preconfigured and programmable patterns
    • Open/short error simulation and real-time detection
    • 6 to 28 V DC polarity-independent power supply
    • GUI for advanced driver configuration
    • RoHS compliant
