STEVAL-ISA107V1

NRND
Design Win

基于ST1S41IPHR(SO-8 ePad)的4 A 850 kHz固定频率PWM同步降压演示板,具有使能功能

下载数据摘要
概述
样片和购买
解决方案
文件
CAD资源
工具与软件
质量与可靠性
开始
Partner products
Sales Briefcase

产品概述

描述

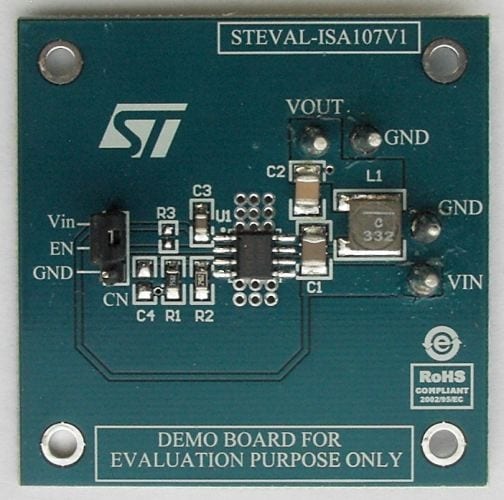

The STEVAL-ISA107V1 is a product evaluation board to aid in testing and designing with the ST1S41 in an SO-8 ePad package. The application is an internally-compensated 850 kHz fixed-frequency PWM synchronous step-down converter.

The ST1S41 operates from 4.0 V to 18 V input, while it regulates an output voltage as low as 0.8 V and up to VIN (100% duty-cycle).

The ST1S41 integrates a 95 mΩ high side switch and a 69 mΩ low side synchronous rectifier allowing very high efficiency with very low output voltages. The peak current mode control with internal compensation delivers very compact solution with a minimum component count.

  • 所有功能

    • 4.0 V to 18 V input voltage
    • Output voltage adjustable from 0.8 V
    • 850 kHz switching frequency
    • Internal soft-start
    • Integrated 95 mΩ and 69 mΩ Power MOSFETs
    • All ceramic capacitor
    • Enable
    • Cycle by cycle current limiting
    • Current fold back short circuit protection
    • RoHS compliant
