STEVAL-ISA146V1

批量生产
储存到myST

基于ST1S50的4 A降压开关稳压器评估板

下载数据摘要
Order Direct
概述
Online design
样片和购买
解决方案
文件
CAD资源
工具与软件
质量与可靠性
开始
Partner products
Sales Briefcase

产品概述

描述

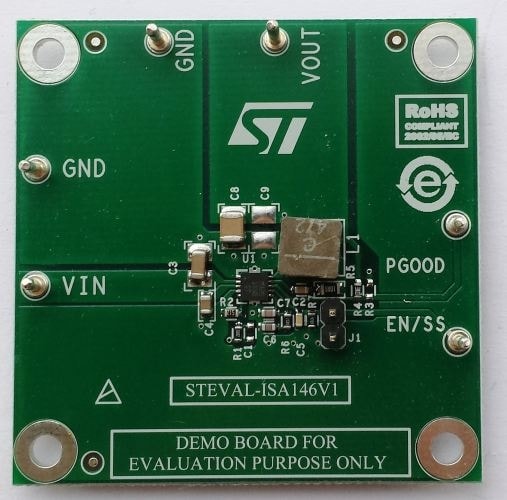

The STEVAL-ISA146V1 is a product evaluation board used to evaluate the ST1S50, a 500 kHz fixed-frequency PWM synchronous step-down regulator. The ST1S50 operates from a 4.0 V to 18 V input, while it regulates an output voltage as low as 0.8 V and up to 0.88 x VIN.

  • 所有功能

    • 4 A output current
    • 4.0 V to 18 V input voltage
    • Output voltage adjustable from 0.8 V to 0.88 x VIN
    • 500 kHz switching frequency
    • High efficiency at light load
    • Programmable soft-start and enable
    • Integrated 95 mW and 69 mW power MOSFETs
    • All ceramic capacitor
    • Power Good
    • Cycle-by-cycle current limiting
    • Short-circuit protection
    • Hysteretical thermal shutdown
    • RoHS compliant
    阅读更多 阅读较少信息
