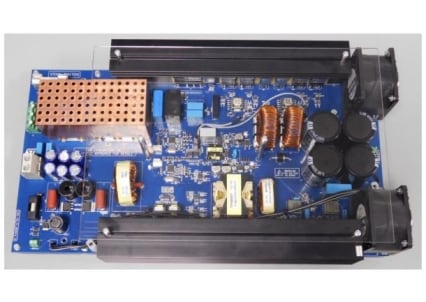

  • The STEVAL-ISA172V2 is a 2 kW fully digital switch mode AC-DC converter consisting of two power sections: a two phase interleaved power factor corrector (PFC) and a DC-DC phase-shifted full-bridge converter, controlled by a STM32F334 microcontroller for each section.

    The interleaved PFC comprises two boost converters operating with 180° out of phase, based on 600 V MDmesh M2 Power MOSFETs. The downstream section comprises of a DC-DC phase-shifted full-bridge converter based on MDmesh DM2 Power MOSFETs and performing voltage step down using HF transformer, with a primary to secondary ratio chosen to maintain high enough efficiency and regulation over the entire operating range.
    On the primary side the transformer is supplied by the full-bridge converter and switching losses are reduced thanks to zero voltage switching (ZVS) operation.
    On the secondary side synchronous rectification (SR) is used to ensure low conduction losses. The output voltage waveform is rectified by STripFET Power MOSFETs and then smoothed by the output filter.

    主要特性

    • Input AC voltage: 90 V to 264 V
    • Output voltage: 48 V or 52 V, Max output current: 42 A
    • Input AC frequency: 45 Hz to 65 Hz
    • Nominal output power: 2 kW
    • Interleaved PFC stage
    • PFC switching frequency: 60 kHz
    • PFC Average current mode control
    • Cycle by cycle PFC current control
    • Maximum power factor: 0.99
    • DC-DC stage: full-bridge phase-shifted ZVS with synchronous rectification
    • DC-DC switching frequency: 100 kHz
    • Overall efficiency: 80 PLUS Platinum level
    • HF transformer isolation voltage: 4 kV
    • Forced cooling with air flow speed modulation according to the output power
    • Over-temperature protection
    • Output short-circuit protection
    • PFC control & DC-DC control: managed by STM32F334C8
    • PFC power stage based on MDmesh M2 Power MOSFETs and SiC Diodes
    • DC-DC power stage based on MDmesh DM2 Power MOSFETs
    • Synchronous rectification based on STripFET Power MOSFETs
    • Active clamp circuit based on MDmesh DM2 Power MOSFETs
    • EMC filter for noise reduction
    • RoHS compliant

适合您的资源

相关应用

数据中心

电信设施

工业电源及工具

电源和变换器

00 选择要下载的文档

技术文档

    • 描述 版本 文档大小 操作
      DB2964
      2 kW fully digital AC-DC power supply (D-SMPS) evaluation board
      2.0
      428.75 KB
      PDF
      DB2964

      2 kW fully digital AC-DC power supply (D-SMPS) evaluation board

    • 描述 版本 文档大小 操作
      AN4856
      STEVAL-ISA172V2: 2 kW fully digital AC - DC power supply (D-SMPS) evaluation board
      1.0
      4.25 MB
      PDF
      AN4856

      STEVAL-ISA172V2: 2 kW fully digital AC - DC power supply (D-SMPS) evaluation board

    • 描述 版本 文档大小 操作
      UM2088
      Getting started with the 2 kW fully digital AC-DC power supply (D-SMPS) evaluation board
      1.0
      1.3 MB
      PDF
      UM2088

      Getting started with the 2 kW fully digital AC-DC power supply (D-SMPS) evaluation board

Hardware Resources

    • 描述 版本 文档大小 操作
      STEVAL-ISA172V2 gerber files 1.0
      442.63 KB
      ZIP

      STEVAL-ISA172V2 gerber files

    • 描述 版本 文档大小 操作
      STEVAL-ISA172V2 BOM 1.0
      70.86 KB
      PDF

      STEVAL-ISA172V2 BOM

    • 描述 版本 文档大小 操作
      STEVAL-ISA172V2 schematic 1.0
      183.3 KB
      PDF

      STEVAL-ISA172V2 schematic

出版刊物和宣传资料

    • 描述 版本 文档大小 操作
      eDesignSuite-The smart way to design your application 1.0
      842.88 KB
      PDF

      eDesignSuite-The smart way to design your application

法律

    • 描述 版本 文档大小 操作
      Terms of use 1.7
      57.54 KB
      PDF

      Terms of use

质量与可靠性

产品型号 Marketing Status 封装 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-ISA172V2
批量生产
CARD 工业 Ecopack2 -

STEVAL-ISA172V2

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

产品型号
从分销商订购
从ST订购
核心产品
供货状态
供应商
ECCN (US)
ECCN (EU)
Country of Origin
Board production status
Budgetary Price (US$)*/Qty
STEVAL-ISA172V2 Available at 4 distributors

...的经销商可用性STEVAL-ISA172V2

代理商名称
地区 库存 最小订购量 第三方链接
DIGIKEY WORLDWIDE 3 1 马上订购
YOSUN ASIA/PACIFIC 1 1 马上订购
RS COMPONENTS EUROPE 4 1 马上订购
MOUSER WORLDWIDE 4 1 马上订购

代理商库存报告日期: 2020-09-19

代理商名称

DIGIKEY

库存

3

Min.Order

1

地区

WORLDWIDE 马上订购

YOSUN

库存

1

Min.Order

1

地区

ASIA/PACIFIC 马上订购

RS COMPONENTS

库存

4

Min.Order

1

地区

EUROPE 马上订购

MOUSER

库存

4

Min.Order

1

地区

WORLDWIDE 马上订购

代理商库存报告日期: 2020-09-19

立即购买 STM32F334C8
批量生产
ST EAR99 NEC ITALY - 712.0 / 1

STEVAL-ISA172V2

核心产品

STM32F334C8

供货状态

批量生产

Budgetary Price (US$)*/Qty

712.0 / 1

...的经销商可用性STEVAL-ISA172V2

代理商名称
地区 库存 最小订购量 第三方链接
DIGIKEY WORLDWIDE 3 1 马上订购
YOSUN ASIA/PACIFIC 1 1 马上订购
RS COMPONENTS EUROPE 4 1 马上订购
MOUSER WORLDWIDE 4 1 马上订购

代理商库存报告日期: 2020-09-19

代理商名称

DIGIKEY

库存

3

Min.Order

1

地区

WORLDWIDE 马上订购

YOSUN

库存

1

Min.Order

1

地区

ASIA/PACIFIC 马上订购

RS COMPONENTS

库存

4

Min.Order

1

地区

EUROPE 马上订购

MOUSER

库存

4

Min.Order

1

地区

WORLDWIDE 马上订购

代理商库存报告日期: 2020-09-19

供应商

ST

ECCN (US)

EAR99

ECCN (EU)

NEC

Budgetary Price (US$)* / Qty

712.0 / 1

Country of Origin

ITALY

Board production status

-

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商
