High-side current-sense amplifier demonstration board based on the TSC102

下载产品简介

Order from our distributors

查看供货情况
概述
工具与软件
资源
解决方案
质量与可靠性
Sales Briefcase
eDesignSuite
开始
样片和购买
Partner products

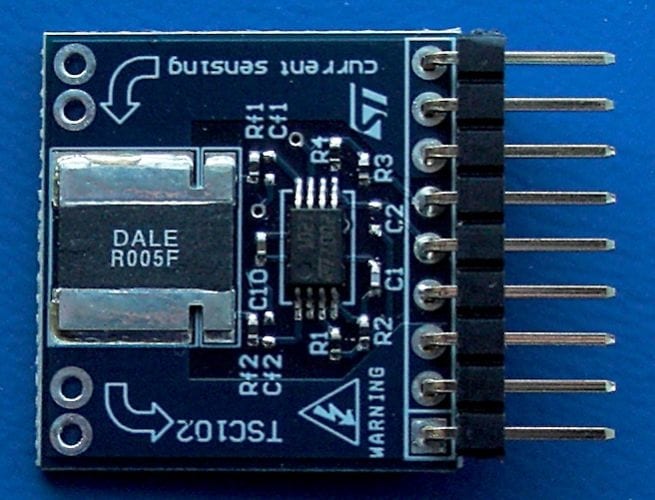

  • The STEVAL-ISQ010V1 demonstration board is specifically designed for the TSC102 device.

    The TSC102 measures a very small voltage drop on a high-side shunt resistor and, using an internally fixed gain, amplifies the difference into a ground-referenced output voltage. The amplification gain is internally fixed. The device is housed in a tiny TSSOP8 package.
    Input common-mode and power supply voltages are independent. The common-mode voltage can range from 2.8 V to 30 V during operation. Under absolute maximum rating conditions, the Vp and Vm pins can sustain as much as 60 V to handle events like load-dump conditions, and as low as -16 V to deal with reverse battery conditions.
    The supply voltage can range from 3.5 V to 5.5 V, therefore the TSC102 can be supplied by the same voltage regulator used for digital circuits.
    Current consumption is less than 450 μA over the temperature range, and low input bias current is less than 7 μA in standard conditions.

    主要特性

    • RoHS compliant
    • Integrated fully-accessible operational amplifier for tailor-made signal conditioning
    • Independent supply and input common-mode voltages
    • Wide common-mode survival range: -16 V to 60 V (reverse battery and load-dump conditions)
    • Wide common-mode operating range: 2.8 V to 30 V
    • Internally fixed gain: 20 V/V
    • Low current consumption: Icc max = 450 μA

样片和购买

产品型号
核心产品
供货状态
预算价格(US$)
数量
ECCN (US)
Country of Origin
从分销商订购
从ST订购
STEVAL-ISQ010V1 TSC102IPT
批量生产
33 1 EAR99 ITALY 查看供货情况

Distributor availability ofSTEVAL-ISQ010V1

代理商名称
地区 库存 最小订购量 Third party link
P&S ASIA/PACIFIC 1 1 Order Now

代理商库存报告日期: 2019-10-12

代理商名称

P&S

库存

1

Min.Order

1

地区

ASIA/PACIFIC Order Now

代理商库存报告日期: 2019-10-12

STEVAL-ISQ010V1

核心产品

TSC102IPT

供货状态

批量生产

单价(US$)

33.0*

Distributor availability ofSTEVAL-ISQ010V1

代理商名称
地区 库存 最小订购量 Third party link
P&S ASIA/PACIFIC 1 1 Order Now

代理商库存报告日期: 2019-10-12

代理商名称

P&S

库存

1

Min.Order

1

地区

ASIA/PACIFIC Order Now

代理商库存报告日期: 2019-10-12

单价(US$)

33

数量

1

ECCN (US)

EAR99

Country of Origin

ITALY

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商

适合您的资源

00 选择要下载的文档

技术文档

    • 描述 版本 文档大小 操作
      DB0982
      High-side current-sense amplifier demonstration board based on the TSC102
      1.2
      74.27 KB
      PDF
      DB0982

      High-side current-sense amplifier demonstration board based on the TSC102

硬件资源

    • 描述 版本 文档大小 操作
      Gerber files for STEVAL-ISQ010V1 board 1.0
      58.88 KB
      ZIP

      Gerber files for STEVAL-ISQ010V1 board

    • 描述 版本 文档大小 操作
      BOM for STEVAL-ISQ010V1 board 1.0
      58.69 KB
      PDF

      BOM for STEVAL-ISQ010V1 board

    • 描述 版本 文档大小 操作
      Board schematics for STEVAL-ISQ010V1 board 1.0
      14.07 KB
      PDF

      Board schematics for STEVAL-ISQ010V1 board

法律

    • 描述 版本 文档大小 操作
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

产品型号 供货状态 封装 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-ISQ010V1
批量生产
CARD 工业 Ecopack2 -

STEVAL-ISQ010V1

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
