STEVAL-LLL012V1

批量生产

Smart LED driver with high power factor using BLE Mesh network for indoor lighting

下载数据摘要 Order Direct
概述
Online design
样片和购买
解决方案
文件
CAD资源
工具与软件
质量与可靠性
Partner products
Sales Briefcase

产品概述

描述

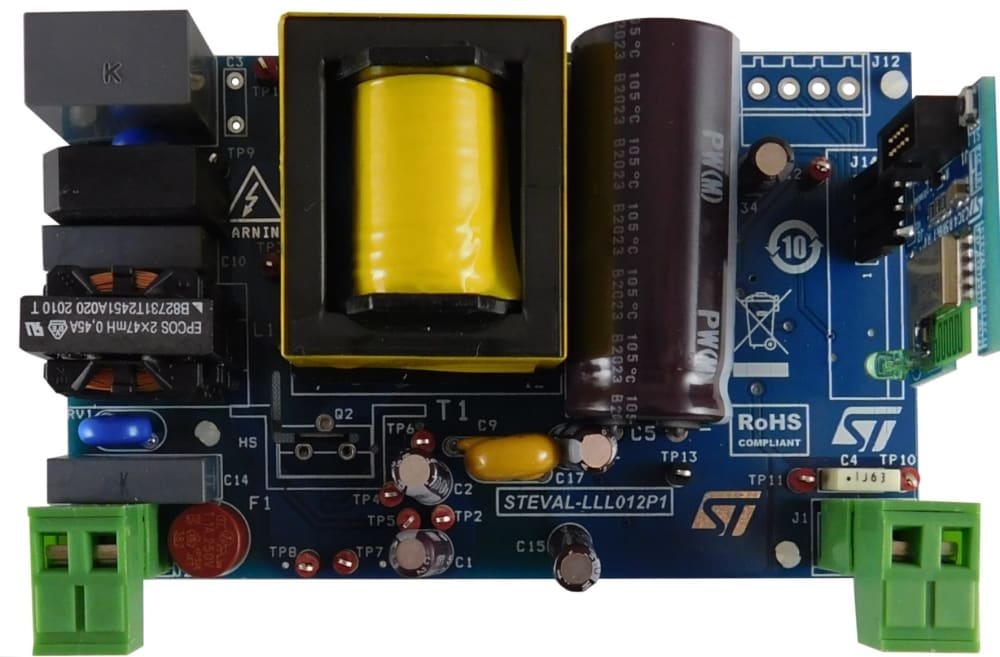

The STEVAL-LLL012V1 smart LED driver reference design is composed of a power board and a connectivity board. The power board is a single stage LED driver with high power factor (HPF) and low total harmonic distortion (THD) tailored to LED power supply specifications for smart home lighting applications.
On the primary side, the HVLED001B controller manages the AC-DC HPF flyback converter. Primary side regulation and optocoupler control are applied independently on the chip, both exploiting precise regulation and very low standby power under no load conditions. The converter supplies a power output of 35 W maximum and a LED voltage in the range of 24 - 48 V with a constant current regulation of 0.7 A.
The power board can provide 3.3 V supply voltage (J12 pin 1) to the connectivity board (connected via J12) and to a common GND (J12 pin 4).
Thanks to the embedded programmable BlueNRG-M2SP, the connectivity board can manage the enable/disable state (J12 pin 3) and the PWM dimming (J12 pin 2) signals.
  • 所有功能

    • 35 W LED driver with high power factor (HPF) flyback and constant current (CC) secondary regulation
    • Wireless connectivity using BLE module
    • ST BLE Mesh mobile app support
    • Accepts remote on/off and PWM dimming commands (10 -100%)
    • 0.7 A LED current
    • 24 - 48 V LED voltage
    • THD < 15%
    • PF > 0.95 at full load for wide range input
    • Efficiency >90%
    • Standby consumption < 0.5 W

您可能还会喜欢...

All tools & software

    • 产品型号
      状态
      描述
      类型
      供应商

      STSW-LLL012FW

      批量生产

      Software for STEVAL-LLL012V1 smart LED driver with high power factor using BLE mesh network for indoor lighting

      评估工具软件 ST
      STSW-LLL012FW

      描述:

      Software for STEVAL-LLL012V1 smart LED driver with high power factor using BLE mesh network for indoor lighting
    • 产品型号
      状态
      描述
      类型
      供应商

      STSW-BNRG-Mesh

      批量生产

      低功耗蓝牙Mesh网络

      接口和连接IC软件 ST
      STSW-BNRG-Mesh

      描述:

      低功耗蓝牙Mesh网络

质量与可靠性

产品型号 Marketing Status 封装 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
STEVAL-LLL012V1
批量生产
CARD 工业 Ecopack2 Yes

STEVAL-LLL012V1

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

产品型号
从分销商订购
从ST订购
核心产品
供货状态
供应商
ECCN (US)
ECCN (EU)
Country of Origin
Budgetary Price (US$)*/Qty
STEVAL-LLL012V1 Available at 4 distributors

经销商的可用性STEVAL-LLL012V1

代理商名称
地区 库存 最小订购量 第三方链接
DIGIKEY WORLDWIDE 5 1 Buy from Distributor
RS COMPONENTS EUROPE 5 1 Buy from Distributor
MOUSER WORLDWIDE 4 1 Buy from Distributor
Farnell Element14 EUROPE 10 1 Buy from Distributor

代理商库存报告日期: 2021-10-16

代理商名称

DIGIKEY

库存

5

Min.Order

1

地区

WORLDWIDE Buy from Distributor

RS COMPONENTS

库存

5

Min.Order

1

MOUSER

库存

4

Min.Order

1

地区

WORLDWIDE Buy from Distributor

Farnell Element14

库存

10

Min.Order

1

代理商库存报告日期: 2021-10-16

Buy Direct HVLED001B, BlueNRG-M2, STD10LN80K5
批量生产
ST 5A992C 5A002A2 ITALY 118.0 / 1

STEVAL-LLL012V1

核心产品

HVLED001B, BlueNRG-M2, STD10LN80K5

供货状态

批量生产

Budgetary Price (US$)*/Qty

118.0 / 1

经销商的可用性STEVAL-LLL012V1

代理商名称
地区 库存 最小订购量 第三方链接
DIGIKEY WORLDWIDE 5 1 Buy from Distributor
RS COMPONENTS EUROPE 5 1 Buy from Distributor
MOUSER WORLDWIDE 4 1 Buy from Distributor
Farnell Element14 EUROPE 10 1 Buy from Distributor

代理商库存报告日期: 2021-10-16

代理商名称

DIGIKEY

库存

5

Min.Order

1

地区

WORLDWIDE Buy from Distributor

RS COMPONENTS

库存

5

Min.Order

1

MOUSER

库存

4

Min.Order

1

地区

WORLDWIDE Buy from Distributor

Farnell Element14

库存

10

Min.Order

1

代理商库存报告日期: 2021-10-16

供应商

ST

ECCN (US)

5A992C

ECCN (EU)

5A002A2

Budgetary Price (US$)* / Qty

118.0 / 1

Country of Origin

ITALY
