产品概述

描述

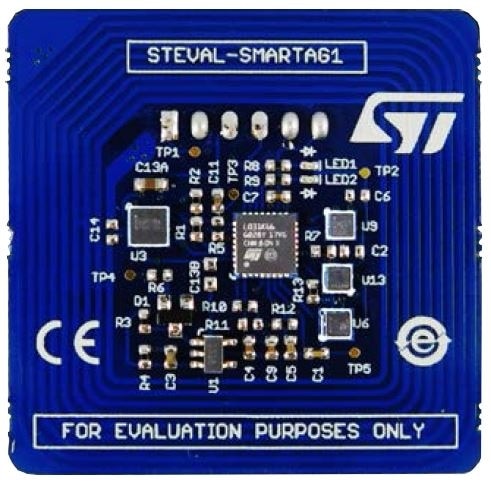

This smart and flexible NFC Tracker evaluation board with sensors includes a comprehensive software library and a sample application to monitor and log sensor data over NFC from an Android or iOS device.

The ultra-low power sensor node evaluation board mounts an ST25DV NFC Tag, an STM32L0 ARM Cortex M0+, environment sensors (temperature, humidity and pressure) and motion (accelerometer) sensor.

The evaluation board features NFC harvesting to supply power and a battery cradle for a CR2032 battery.

所有功能
ST25DV64K dynamic NFC tag solution based on 64K-bit (8K-Byte) EEPROM and with I²C interface, Fast Transfer Mode and Energy Harvesting features

STM32L031K6 ultra-low-power ARM Cortex-M0+ MCU running at 32 MHz with 32-Kbytes Flash and 8-Kbytes RAM

LIS2DW12 ultra-low-power high-performance three-axis linear accelerometer

LPS22HB ultra-compact piezo-resistive absolute pressure sensor which functions as a digital output barometer: 260-1260 hPa

HTS221 capacitive digital sensor for relative humidity and temperature

STLQ015 low drop linear regulator power management

CR2032 Battery powered (not included)

STM32Cube function pack (FP-SNS-SMARTAG1)

Android (Google Play) and iOS demo apps (ST SmarTag)

Suitable for the following applications:

Internet of Things

Supply Chain and Cold-Chain Management

Smart building, home and city

Retail and apparel

Smart packaging

Medical and pharmaceutical

Batteryless sensing

Smart agriculture (soil control, animal tracking, etc.)
