STEVAL-TDR031V1

批量生产

基于PD85035S-E的45 W / 380-490 MHz RF功耗模块,用于移动无线电应用

下载数据摘要
概述
Online design
样片和购买
解决方案
文件
CAD资源
工具与软件
质量与可靠性
Partner products
Sales Briefcase

产品概述

描述

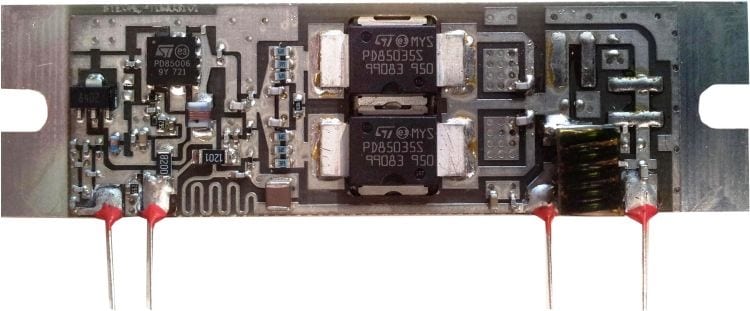

The STEVAL-TDR031V1 demonstration board is a 45 W hybrid RF power module for 12.5 V mobile radios that operate in the 380-490 MHz band. This module is a 3-stage lineup power amplifier using the PD84002, the PD85006L-E and two PD85035S-E specially designed for broadband operation, allowing power control, high gain and high efficiency.
The board uses devices in plastic packages to ensure a moisture sensitivity level not achievable with similar modules using chip-on-board technology.
  • 所有功能

    • N-channel enhancement-mode lateral MOSFETs (IDD ≈ 0 @ VDD = 12.5 V, VGG = 0)
    • Pout> 45 W, ƞtot> 50% @ VDD = 12.5 V, VGG = 5 V, Pin= 5 dBm
    • Broadband frequency range: 380-490 MHz
    • High moisture sensitivity level
    • Low-power control current IGG = 2 mA (typ) @ VGG = 5 V
    • ESD protection
    • Development kit available to aid in production or system integration
    • RoHS compliant
