X-NUCLEO-53L5A1

批量生产
Design Win

Expansion board for VL53L5CX

下载数据摘要 Order Direct
概述
样片和购买
解决方案
文件
CAD资源
工具与软件
质量与可靠性
开始
Partner products
Sales Briefcase

产品概述

描述

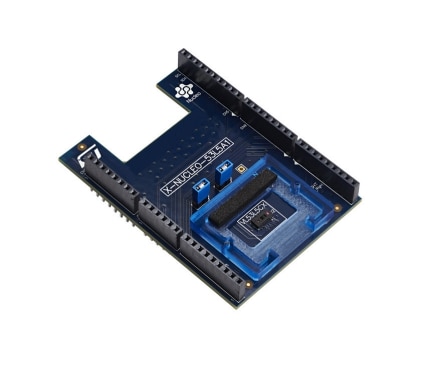

The X-NUCLEO-53L5A1 is an expansion board for the NUCLEO-F401RE development board. It provides a complete evaluation kit allowing anyone to learn, evaluate, and develop their applications using the VL53L5CX, multizone ranging sensor with wide field of view expansion. The X-NUCLEO-53L5A1 expansion board is delivered with a cover glass holder in which three different spacers of 0.25, 0.5, and 1 mm height can be fitted below the cover glass to simulate various air gaps.
The X-NUCLEO-53L5A1 expansion board is compatible with the STM32 nucleo board family, and with the Arduino UNO R3 connector layout.
Several ST expansion boards can be superposed through the Arduino connectors which allows, for example, the development of VL53L5CX applications with Bluetooth or Wi-Fi interfaces.
  • 所有功能

    • VL53L5CX Time-of-Flight 8x8 multizone ranging sensor with wide field of view
    • Accurate absolute ranging distance, independent of the reflectance of the target
    • 0.25, 0.5, and 1 mm spacers to simulate air gaps
    • Cover window to protect sensor from dust
    • Compatible with STM32 Nucleo board family
    • Equipped with Arduino™ UNO R3 connector
    • RoHS, CE, UKCA, and China RoHS compliant
    • Full system software (SW) supplied, including code examples and graphical user interface. All this can be downloaded from the VL53L5CX product page on st.com.

您可能还会喜欢...

All tools & software

    • 产品型号
      状态
      描述
      类型
      供应商

      STSW-IMG024

      批量生产

      GUI for VL53L5CX expansion boards

      接近传感器软件 ST
      STSW-IMG024

      描述:

      GUI for VL53L5CX expansion boards

      STSW-IMG035

      批量生产

      Turnkey gesture recognition solution based on VL53L5CX multizone Time-of-Flight ranging sensor

      接近传感器软件 --
      STSW-IMG035

      描述:

      Turnkey gesture recognition solution based on VL53L5CX multizone Time-of-Flight ranging sensor
    • 产品型号
      状态
      描述
      类型
      供应商

      X-CUBE-TOF1

      批量生产

      Time-of-Flight sensors software expansion for STM32Cube

      STM32 ODE检测软件 ST
      X-CUBE-TOF1

      描述:

      Time-of-Flight sensors software expansion for STM32Cube

质量与可靠性

产品型号 Marketing Status 封装 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
X-NUCLEO-53L5A1
批量生产
CARD 工业 Ecopack1 -

X-NUCLEO-53L5A1

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

Swipe or click the button to explore more details Don't show this again
产品型号
Order from distributors
从ST订购
供货状态
供应商
一般描述
ECCN (US)
ECCN (EU)
Country of Origin
Budgetary Price (US$)*/Qty
X-NUCLEO-53L5A1 Available at 6 distributors

经销商的可用性X-NUCLEO-53L5A1

代理商名称
地区 库存 最小订购量 第三方链接
DIGIKEY WORLDWIDE 186 1 Buy from Distributor
COMPEL EUROPE 4 1 Buy from Distributor
RS COMPONENTS EUROPE 35 1 Buy from Distributor
FUTURE WORLDWIDE 9 1 Buy from Distributor
MOUSER WORLDWIDE 113 1 Buy from Distributor
Farnell Element14 EUROPE 24 1 Buy from Distributor

代理商库存报告日期: 2022-07-25

代理商名称

DIGIKEY

库存

186

Min.Order

1

地区

WORLDWIDE Buy from Distributor

COMPEL

库存

4

Min.Order

1

RS COMPONENTS

库存

35

Min.Order

1

FUTURE

库存

9

Min.Order

1

地区

WORLDWIDE Buy from Distributor

MOUSER

库存

113

Min.Order

1

地区

WORLDWIDE Buy from Distributor

Farnell Element14

库存

24

Min.Order

1

代理商库存报告日期: 2022-07-25

批量生产
ST Expansion board for VL53L5CX EAR99 NEC CHINA

X-NUCLEO-53L5A1 批量生产

ECCN (US):
EAR99
Budgetary Price (US$)*/Qty:
-

产品型号:

X-NUCLEO-53L5A1

供应商:

ST

一般描述:

Expansion board for VL53L5CX

ECCN (EU):

NEC

Country of Origin:

CHINA

经销商的可用性X-NUCLEO-53L5A1

代理商名称
地区 库存 最小订购量 第三方链接
DIGIKEY WORLDWIDE 186 1 Buy from Distributor
COMPEL EUROPE 4 1 Buy from Distributor
RS COMPONENTS EUROPE 35 1 Buy from Distributor
FUTURE WORLDWIDE 9 1 Buy from Distributor
MOUSER WORLDWIDE 113 1 Buy from Distributor
Farnell Element14 EUROPE 24 1 Buy from Distributor

代理商库存报告日期: 2022-07-25

代理商名称

DIGIKEY

库存

186

Min.Order

1

地区

WORLDWIDE Buy from Distributor

COMPEL

库存

4

Min.Order

1

RS COMPONENTS

库存

35

Min.Order

1

FUTURE

库存

9

Min.Order

1

地区

WORLDWIDE Buy from Distributor

MOUSER

库存

113

Min.Order

1

地区

WORLDWIDE Buy from Distributor

Farnell Element14

库存

24

Min.Order

1

代理商库存报告日期: 2022-07-25

Swipe or click the button to explore more details Don't show this again

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商
