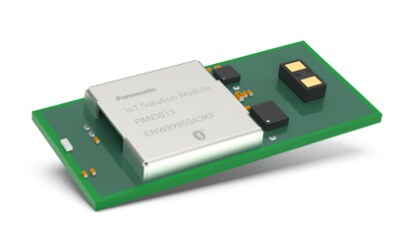

With its selection of sensors, the PAN3013 is a perfect fit for applications in the field of smart industry respective robotics, obstacle detection, gesture recognition or surveillance.
Featured products:
- BlueNRG-2: Bluetooth Low Energy single-mode system-on-chip
- LPS22HH: ultra-compact piezo-resistive absolute pressure sensor, 260-1260 hPa, digital output barometer, full-mold dust resistant, holed LGA package (HLGA)
- HTS221: capacitive digital sensor for relative humidity and temperature
- MP34DT05-A: MEMS audio sensor omnidirectional digital microphone, 64 dB SNR, -26 dBFS sensitivity, top-port, 122.5 dBSPL AOP
Applications:
- Industry 4.0
- Smart Mobility
- Drones
Related Boards:
- STEVAL-BCN002V1B
Downloads:
- Flyer
- Datasheet
- SW examples
- IoT Solution Module Example HowTo Product Technical Specifications :
• Surface mount type dimensions: 31.0 mm x 14.0 mm x 3.0 mm
• Typical Rx Sensitivity: -88 dBm
• Typical Tx output power: +8 dBm
• Power consumption:
o Tx: 32 mA @8dBm (3V) o Rx: 25 mA
o Sleep: 11µA • Voltage range: 2.6 V to 3.5 V
- Supported Devices:BlueNRG-2, VL53L1X, LSM6DSO. LIS2MDL
- Supported Device Technology: Bluetooth
- Supported Sensors: ToF Sensor, Accelerometer/ Gyroscope, Magnetometer
- Temperature range: -20 °C to 85 °C
