Advanced galvanic isolated gate drivers for SIC MOSFETs and IGBTs

STGAP3S: Outstanding robustness with high current and advanced protection

STGAP3S: Outstanding robustness with high current and advanced protection

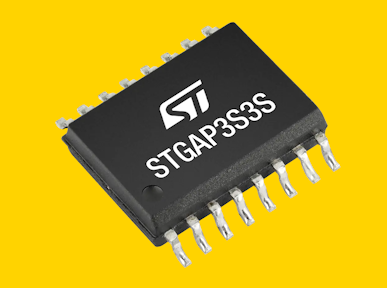

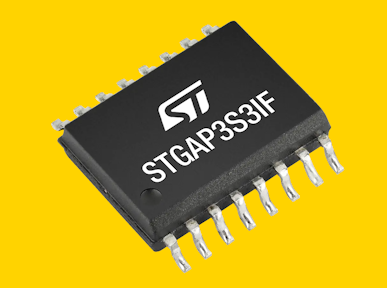

The STGAP3S series, featuring fast desaturation protection and a flexible Miller-clamp function, targets industrial and energy applications. With high CMTI, this gate driver meets the latest requirements in terms of current capability and protection functions. The STGAP3S series includes different options with 10 A and 6 A current capabilities, each available with dedicated UVLO variants for SiC MOSFETs and IGBTs.

Key features

  • BCD9S galvanic isolation technology
  • High voltage: up to 1200 V
  • Driver current: 6A & 10A
  • Drive SiC MOSFETs and IGBTs
  • Desaturation protection
  • Adjustable soft turn-off function
  • Fast response: 75 ns delay
  • Miller CLAMP function
  • Optional negative driving
  • ±200V/ns CMTI

Application examples

air-conditioning

Air conditioning

energy-storage-system

Energy storage system

factory-automation

Factory automation

charging-stations

Charging stations

Evaluation ecosystem

Evaluation boards designed to help you evaluate the STGAP3S isolated single gate drivers.

EVLSTGAP3S6S

EVLSTGAP3S6S

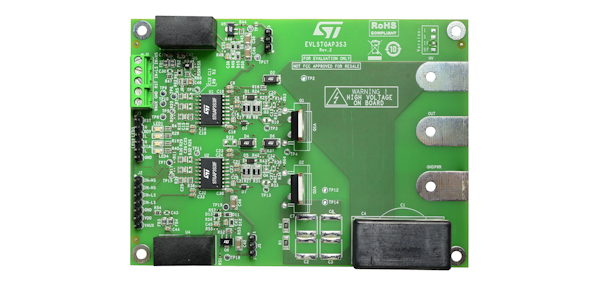

Half-bridge evaluation board for STGAP3S6S SiC MOSFETs isolated gate driver with protections.

EVLSTGAP3SXS-H

EVLSTGAP3SXS-H

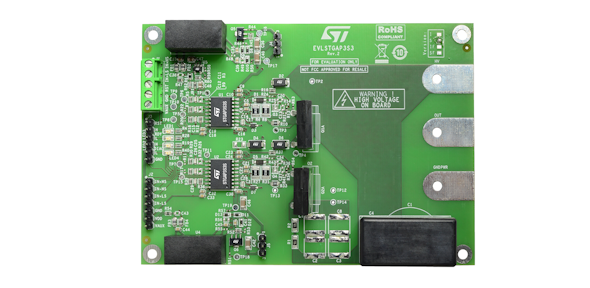

Half-bridge evaluation board for STGAP3SXS SiC MOSFETs isolated gate driver with protections.
