ST25DA-C: Matter commissioning with NFC
Industry-first connectivity and security solution for intuitive smart home experiences
Industry-first connectivity and security solution for intuitive smart home experiences
Device commissioning doesn't have to be complicated or time-consuming. The ST25DA-C NFC tag is an all-in-one connectivity and security solution. With a simple tap from a smartphone, this NFC tag instantly starts the commissioning process, in a secure way. Equipped with built-in security features and fully compliant with the latest Matter specification, it is a turnkey solution for smart home designers looking to simplify device setup for home installers and homeowners.

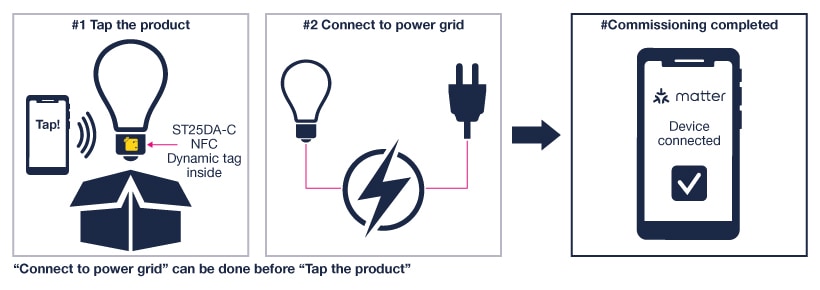

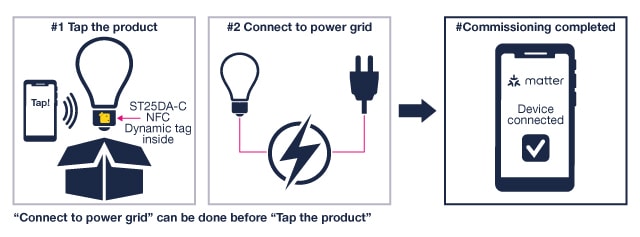

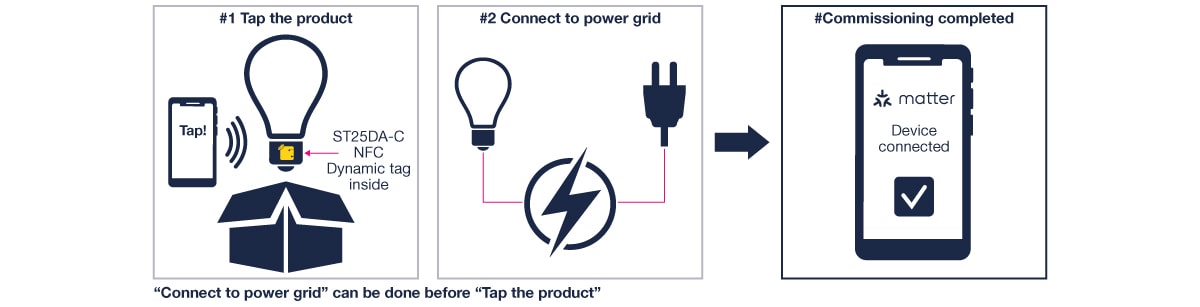

Fast, reliable device commissioning with ST25DA-C
The ST25DA-C NFC dynamic tag elevates brand satisfaction by delivering a fast, intuitive, and robust commissioning experience for end users. Unlike other solutions that require multiple steps, it is the first to offer true one-step pre-commissioning, minimizing failures and saving time. By integrating this tiny tag, brands can now create user-centered interactions that feel natural and effortless, without compromising product aesthetics.
Benefits
Built-in security
Secured private keys & network credentials
Matter algorithms and cryptographic functions
Robust and intuitive UX
NFC technology is everywhere
Faster and more stable than existing alternatives
Enable battery less pre-commissioning
Easy device identification
Pre-commission with a simple tap, anywhere, no power required

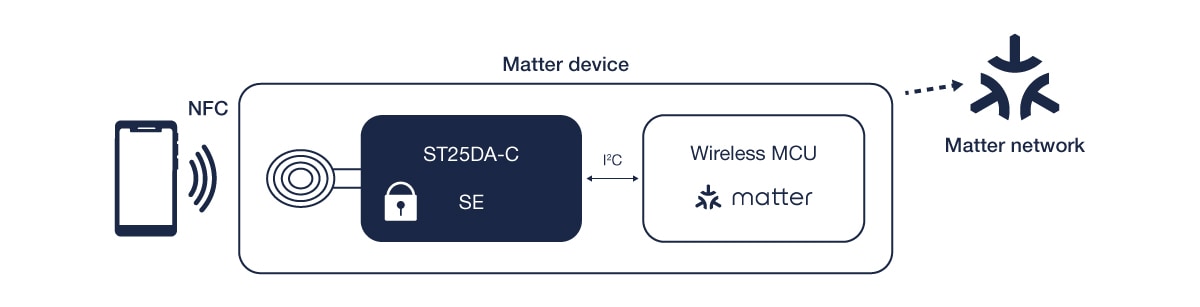

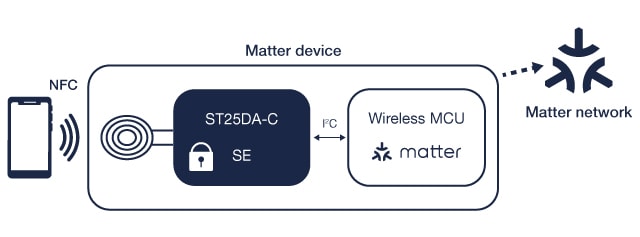

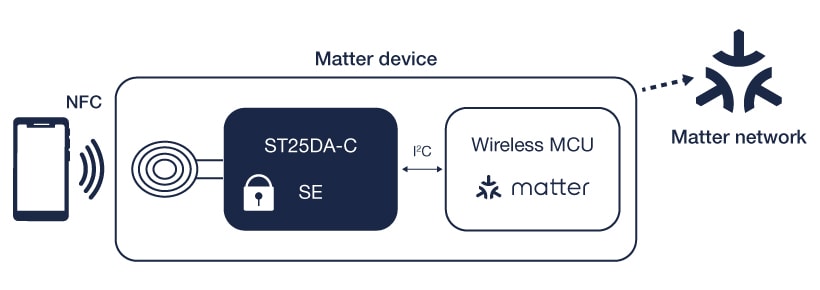

How built-in security simplifies design
The ST25DA-C supports all the algorithms and cryptographic operations required by CSA/Matter standard.
Built on ST expertise in secure devices, the ST25DA-C ensures fully interoperable and secure commissioning of any Matter devices. It stores and protects sensitive data (such as private keys and network credentials) within its embedded secure element. This removes the need for separate secure storage or a secure MCU.
Housed in a compact 2 x 3 mm package, and combined with a tiny antenna, this tag is optimized for small smart home devices.
Turnkey security features inside
- ECDSA with SHA-256
- ECDH for key establishment
- AES-128
- SPAKE2+ & PAKE protocols
- Matter device attestation
- Secure storage for certificates & keys
- Matter signature generation / verification over I²C
- More than 5x fabrics support
