Filters and RX/TX matching network for STM32WL33 Wireless MCUs
Optimized RF performance in a compact package

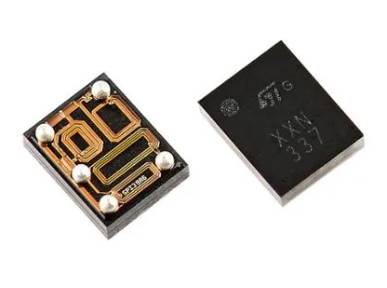

Single-chip impedance matched with harmonics filter for STM32WL33 sub-GHz wireless MCUs
Single-chip impedance matched with harmonics filter for STM32WL33 sub-GHz wireless MCUs
The MLPF-WL-xxD3 series incorporates an impedance matching network, a transmission harmonics filter, and receiver matching within a highly compact and thin package. This matching impedance network enhances the RF performance of STM32WL33 wireless microcontrollers, specifically optimizing their sub-GHz wireless connectivity capabilities.
Why choose the MLPF-WL-xxD3 series?
- Our filters are precisely impedance matched to the STM32WL33 wireless microcontrollers, ensuring optimal performance and reliability in your applications.
- The integrated harmonics filter provides cleaner signal transmission, reducing interference and improving overall communication quality.
Show More
Show Less
Ready to take your wireless applications to the next level?
Select one of the options below to begin:

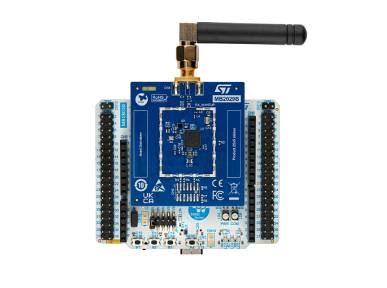

NUCLEO-WL33CCx global view
NUCLEO-WL33CCx global view
The boards are declined in two product variants with dedicated front ends tuned for specific frequency bands:
- NUCLEO-WL33CC1: Front end optimized for 826‑958 MHz high band at 16 dBm
- NUCLEO-WL33CC2: Front end optimized for 413‑479 MHz high band at 16 dBm
