Galvanically isolated, 8-channel high-side power switches
designed for robust, reliable smart factory automation
High-end features and galvanic isolation
The galvanically isolated line of ST intelligent power switches combine process and control logic stages in one 8-channel, high-side switch, with two independent voltage domains able to communicate through galvanically isolated channels. Embedding a flexible SPI or parallel control interface, this new series helps reduce BOMs and PCB space, and improve reliability in factory automation applications.
Available in QFN 9x11 or PowerSO-36 packages with 0.7 A or 1 A per channel, plus dedicated evaluation boards tailored to each package, intuitive GUIs, and software to simplify your design.
Find your ideal isolation device
Simplified control, reliable power
Simplified control, reliable power

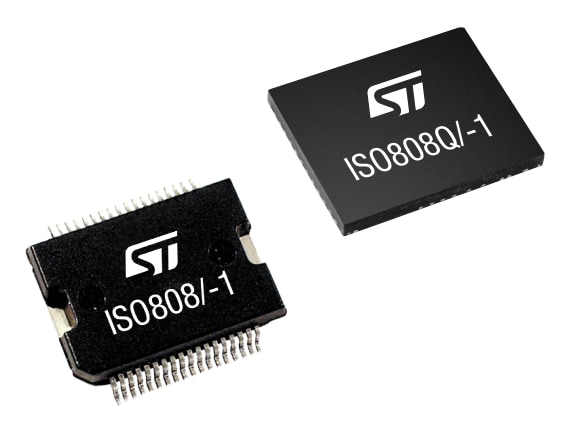

The parallel interface series offers octal high-side switches for designs requiring robust galvanic isolation with easy and direct control. The ISO808 is a scalable solution able to drive loads up to 0.7 A, while the ISO808-1 offers higher power driving up to 1 A.
Advanced control and diagnostics
Advanced control and diagnostics

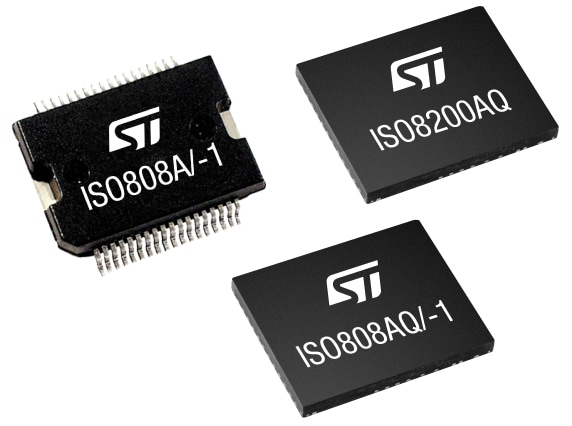

The SPI interface series integrates galvanic isolation and enhanced control and diagnostics. Featuring an SPI interface, the ISO808A for up to 0.7 A loads and the ISO808A-1 for up to 1 A loads offer higher functionality and more advanced diagnostics. The ISO8200AQ allows diagnostics on each channnel.
Get started with our ecosystem
To accelerate your design and streamline your workflow, we offer a comprehensive evaluation ecosystem that includes dedicated evaluation boards tailored to each package type, intuitive graphical user interfaces (GUI), and powerful software - ensuring seamless integration and optimal performance from the very start of your development process.
| Channel current | Find out more | Package options | Related eval boards | Start your design |
|---|---|---|---|---|---|
| ISO808 | 0.7 A | POWERSO-36 | X-NUCLEO-OUT11A1 | ||
| ISO808-1 | 1 A | POWERSO-36 | X-NUCLEO-OUT13A1 | ||
| ISO808A | 0.7 A | POWERSO-36 | X-NUCLEO-OUT12A1 | ||
| ISO808A-1 | 1 A | POWERSO-36 | X-NUCLEO-OUT14A1 | ||
| ISO8200AQ | 0.7 A | TQFPFN32 | X-NUCLEO-OUT02A1 |
Graphical user interface for the industrial IPS evaluation boards based on STM32 Nucleo
The STSW-IFAPGUI graphical user interface is designed to facilitate the control of the industrial IPS expansion boards for STM32 Nucleo.
Software expansion for STM32Cube driving industrial digital output based on IPS
The X-CUBE-IPS expansion software package for STM32Cube runs on the STM32 and includes drivers that control the industrial intelligent power switches (IPS) mounted on several expansion boards.
Whitepaper
Advanced EMI & EMC strategies with enhanced intelligent power switch solutions
