Presence detection evaluation kit

Reduce time to market with this kit featuring combined Time-of-Flight and thermal MOS (TMOS) IR for comprehensive, private detection and coverage, even in shadows and dark regions, with high-speed data collection functionality

First market solution embedding TMOS and Time of Flight (ToF) sensors

The low-power solution protects privacy and reduces false positives, targeting gesture recognition, presence and occupancy detection, safety-critical automation, and other applications.

Note: This board must be used in conjunction with the STWIN.box.

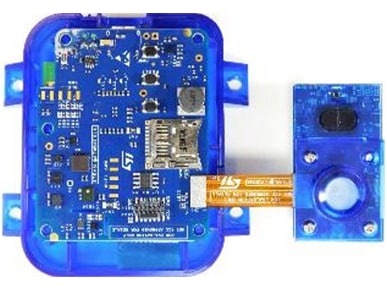

STWIN.box + STEVAL-PDETECT1

System features: STWIN.box + STEVAL-PDETECT1

System features: STWIN.box + STEVAL-PDETECT1

Key benefits:

  • Low power
  • User privacy
  • High accuracy
  • Multisensor modalities

Explore the evaluation kit
Download solution overview

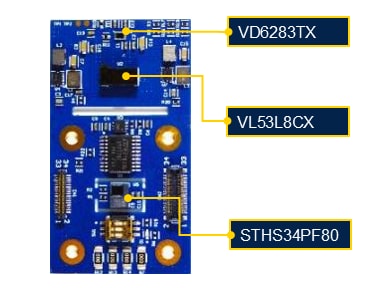

STEVAL-PDETECT1: presence detection kit

STEVAL-PDETECT1: presence detection kit

STEVAL-PDETECT1: presence detection kit

VD6283TX Ambient light Sensor (ALS):

  • R, G, B, IR, Visible and Clear



VL53L8CX 2nd Gen multi-zone ToF module with on-chip processing:

  • Half power consumption
  • Twice as robust to sun light
  • 8x8 multizone, up to 4mt, with 65° FoV



STHS34PF80 Infrared Thermal Metal Oxide Semiconductors (TMOS) sensor:

  • Non-intrusive presence detection
  • Low power (5µA typ @ 1Hz)
  • Small and thin

Explore the evaluation kit
Download solution overview

TMOS + Time-of-Flight: complementary solution

TMOS + Time-of-Flight: complementary solution

TMOS:

  • Ultralow power consumption (µW)
  • Wide field of view (FoV)
  • Adjustable range & FoV with lens
  • System wake up
  • Passive sensor
  • IR heat detection

ToF:

  • Touchless control with gesture
  • Passing-by detection
  • People counting
  • Ranging (distance)
  • Active (transmit and receiver)
  • IR light detection
