Power up your brushless motors with STDRIVE102 advanced gate drivers

The STDRIVE102 series embeds flexible gate drivers combined with the power to drive six external N-channel MOSFETs. All drivers have programmable gate current for precision tuning. Embedded operational amplifiers and comparators in the integrated analog front end deliver flexible current sensing and robust overcurrent protection. The series is available in 5 mm x 5 mm or 6 mm x 6 mm QFN packages.

STDRIVE102 integrated 3-phase drivers for BLDC motors

Advanced 3-phase low voltage gate driver family for enhanced features, robustness, and performances

Designed for versatility and efficiency, this advanced product lineup powers applications up to 50 V. It is ideal for battery-powered tools, vacuum cleaners, E-bikes, robotics, and small appliances where every milliampere counts. The embedded analog front end is used for current sensing and protection support. The STDRIVE102BP integrates three programmable gain amplifiers and three comparators, while the STDRIVE102P integrates one programmable gain amplifier and one comparator. The programmable gain amplifiers can amplify shunt-voltage signals from each motor phase for accurate current monitoring, and the comparators help detect overcurrent events quickly and reliably. Configuration and diagnostics are available through the SPI interface.

Learn more Get free samples

Power tools

Fans

Drones

Home appliance

Robotic

e-bike

Lawn care equipment

Advanced features and diagnostics

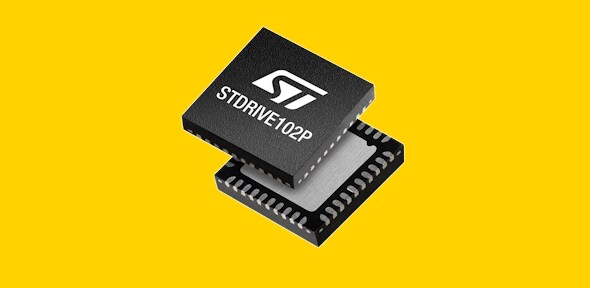

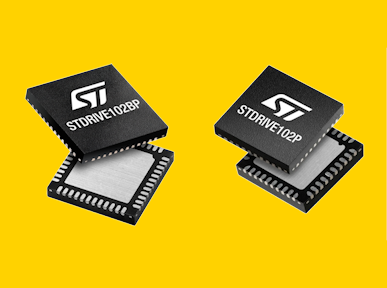

STDRIVE102P

The STDRIVE102P is a compact, SPI-configurable triple half-bridge gate driver for 3-phase motor control. It combines programmable gate currents, integrated protection, and a simple analog front end with one programmable-gain amplifier and one comparator. This device is well suited for robust and flexible motor-drive designs..

Learn more Get free samples

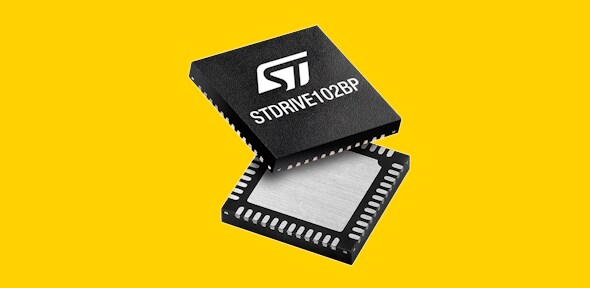

STDRIVE102BP

The STDRIVE102BP is the preferred choice when the application requires high current-sense flexibility, detailed fault diagnostics, and full SPI-based configurability. Its three programmable-gain amplifiers and three comparators make it well suited for advanced control schemes and robust protection management in demanding motor-drive designs.

Learn more Get free samples

STDRIVE102H

The STDRIVE102H is optimized for single-shunt control, offering a cost-effective solution for compact and efficient designs. With one operational amplifier and two comparators, it provides flexible current sensing and overcurrent protection. Typical applications include cordless appliances, e-bikes, and mobile robots, delivering efficient operation and low standby power consumption <50 nA.

Learn more Get free samples

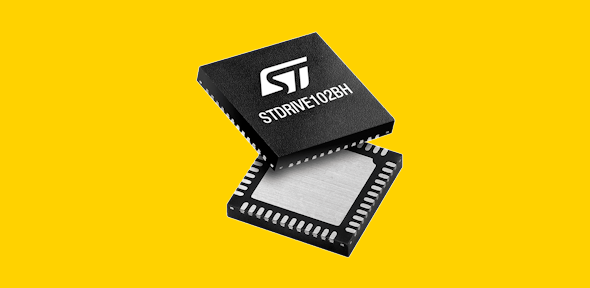

STDRIVE102BH

The STDRIVE102BH is well suited to motor-drive applications that require precise triple-shunt current sensing, fast fault detection, and robust protection. With three operational amplifiers, three comparators, and programmable gate-drive control, it supports accurate current monitoring and reliable power-stage operation in demanding designs.

Learn more Get free samples

Key features

Operating voltage up to 50 V
Adjustable gate current: 25 mA to 1 A source & 50 mA to 2 A sink
Fully self-supplied (12 V and 3.3 V regulators)
Charge pump (100% duty-cycle)
Improved below-ground and overshoot robustness

Embedded analog front end
Full set of protections incl. UVLO, comparators, VDS monitor, thermal shutdown
Short propagation delay 50 ns with excellent phase matching
Very low standby consumption < 50 nA

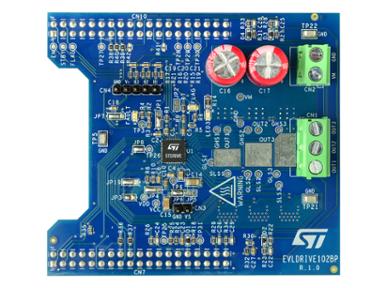

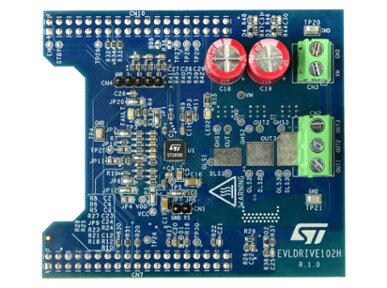

Your path to faster prototyping

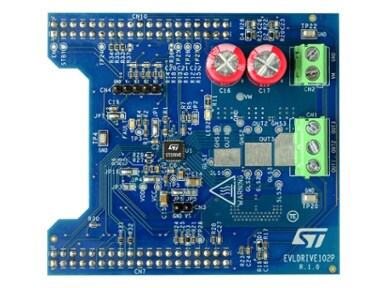

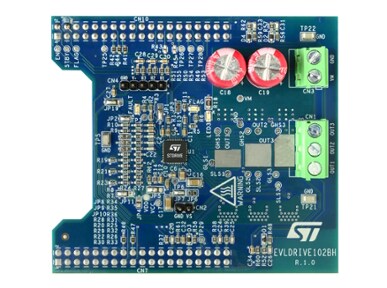

Complete evaluation of STDRIVE102 for 3-phase BLDC motor driving with support for both FOC and six-step control. Connect to STM32 using the motor control connector and any Nucleo board for fast interaction. The board supports three-shunt or single-shunt current sensing, Hall and sensorless motion control, BEMF sensing, bus voltage, and PCB temperature monitoring. Setup is easy with free software libraries.
