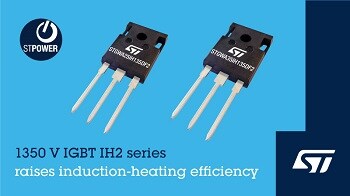

1350-1600 V IH2 series IGBTs, ideal for soft switching applications
High-voltage range for induction cookers
Maximize efficiency in single-switch quasi-resonant converters from 16 to 60 kHz switching frequency
Maximize efficiency in single-switch quasi-resonant converters from 16 to 60 kHz switching frequency
The IH2 series IGBTs available in 1350 V and now 1600 V feature advanced trench gate field-stop (TGFS) architecture. The offer higher breakdown voltage in combination with low VCEsat, low thermal resistance, and extended 175°C maximum junction temperature to increase operating margins and raise reliability and ruggedness under all conditions. The low drop diode and optimized turn-off energy ensure efficient, single-switch, quasi-resonant converters from 16 to 60 kHz switching frequency range.
- Low conduction losses: low saturation voltage allows lower power dissipation
- Enhanced switching performance: advanced trench gate field-stop (TGFS) architecture minimizes tail current for lower turn-off energy
- Low forward voltage: thanks to low-drop and soft recovery antiparallel diode
- High thermal efficiency: low thermal resistance ensures efficient heat dissipation
- High temperature capability: maximum junction temperature of 175°C improves durability in challenging environments
- High-voltage spike tolerant:
1600 V breakdown voltage allows the device to handle large voltage surges and spikes
- Simplified BOM: high breakdown voltage and thermal efficiency minimize the need for external protections
- Easy paralleling: tight parameters distributions and positive VCE(sat) temperature coefficient enable parallel device connections
- Application specific: ideal for single switch quasi-resonant converters in price-sensitive markets
Choosing from the IH2 series IGBT options
STGWA30IH160DF2
1600 V, 30 A IH2 series trench gate field-stop IGBT
The latest STGWA30IH160DF2 device offers a robust 1600 V, 30 A trench gate field-stop IGBT in a TO-247 long leads package.
STGWA35IH135DF2
1350 V, 35 A IH2 series trench gate field-stop IGBT
The STGWA35IH135DF2 is a powerful 1350 V, 35 A trench gate field-stop IGBT from our IH2 series, supplied in a TO-247 long leads package.
STGWA25IH135DF2
1350 V, 25 A IH2 series trench gate field-stop IGBT
The STGWA25IH135DF2 delivers reliable performance as a 1350 V, 25 A trench gate field-stop IGBT from our IH2 series, housed in a TO-247 long leads package.
