STEVAL-QUADV01
4-in-1 DC power supply solutions
A flexible power management solution to design your project quickly and efficiently
A flexible power management solution to design your project quickly and efficiently

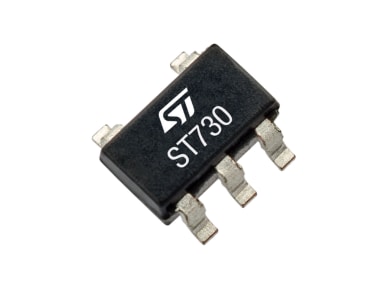

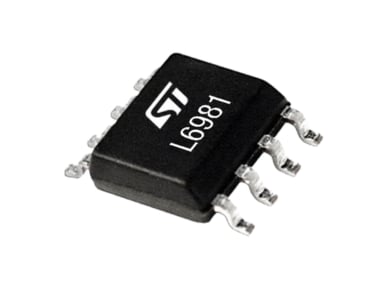

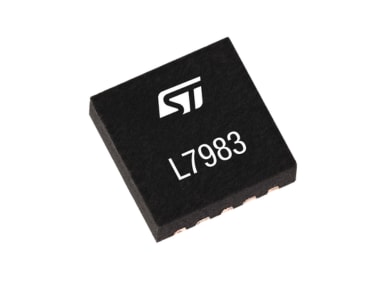

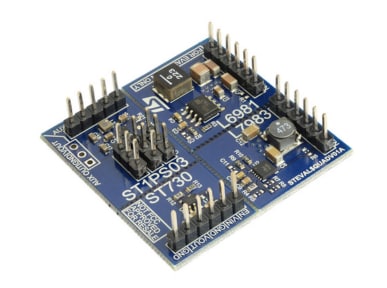

The STEVAL-QUADV01 evaluation board is a versatile tool based on the L6981, L7983, and ST1PS03 step-down regulators and the ST730 LDO.
The board offers four distinct approaches for generating a 5 V output voltage that can be conveniently adjusted to alternative values, making it suitable for a wide range of applications.
Application examples
Industrial sensors
Asset tracking
Electronic meter
Battery-powered systems
Recommended resources

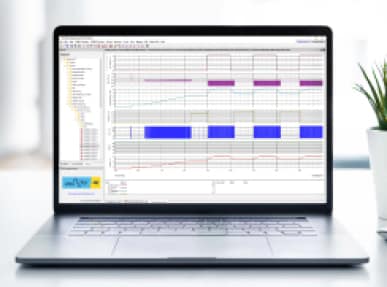

eDSim: fast and powerful electrical simulation software for analog ICs
