High-accuracy, 36 V operational amplifiers
for industrial and automotive sensor signal conditioning
Achieve exceptional performance and reliability with our latest op amp solutions
ST’s TSB1 series offers a perfect combination of precision, versatility, efficiency, and reliability. Whether you are designing industrial control systems, automotive electronics, medical devices, or instrumentation , the TSB18 series and TSB192 high-precision op amps are ideal for demanding applications requiring high precision, low noise, and wide bandwidth.
Automotive
Industrial
Medical
Power supplies
Use cases and application examples
Discover our offer
TSB18 and TSB192 share the same zero drift, very low offset architecture, rail to rail output, 4 to 36 V supply range, and –40°C to 125°C operation, but tuned for different performance levels.
- TSB18 offers a 3 MHz gain bandwidth, 2 V/µs slew rate, and 24 nV/√Hz noise, making it ideal for low power, cost effective precision in sensor interfaces. The TSB18 series is also robust and qualified to meet both industrial and automotive application requirements.
- TSB192 pushes performance further with an 8 MHz gain bandwidth, 5 V/µs slew rate, and 11 nV/√Hz noise, targeting more demanding applications where higher bandwidth and lower noise are key.
Available in industrial and automotive grades

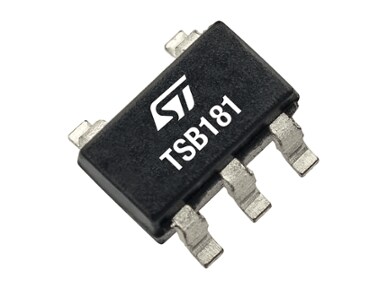

TSB181
36 V zero-drift single op amp with 20 µV accuracy and 3 MHz bandwidth.
Available in industrial and automotive grades

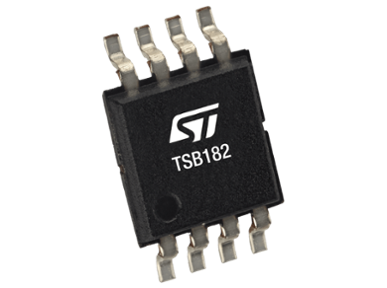

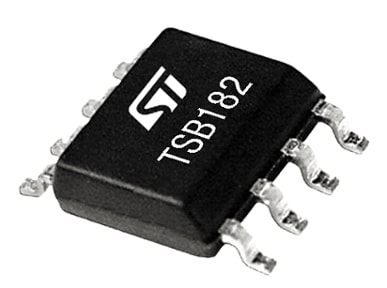

TSB182
36 V zero-drift dual op amp with 20 µV accuracy and 3 MHz bandwidth.
Available in industrial grade

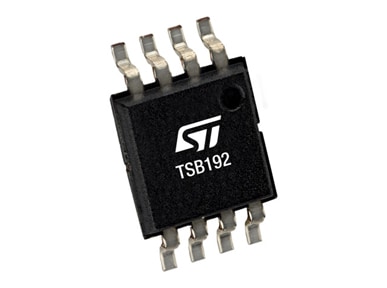

TSB192
36 V zero-drift dual op amp with 20 µV accuracy and 8 MHz bandwidth.
Key features and benefits
- Zero-drift architecture
- Very low offset voltage: 20 µV max. @ 25°C
- Rail-to-rail output
- Wide supply voltage: 4 to 36 V
- Gain bandwidth product: 3 MHz (TSB18) – 8 MHz (TSB19)
- Slew rate: 2 V/µs (TSB18) – 5V/µs (TSB192)
- Low noise: 24 nV/√Hz (TSB18) - 11 nV/√Hz (TSB192)
- Extended temperature range: -40°C to 125°C

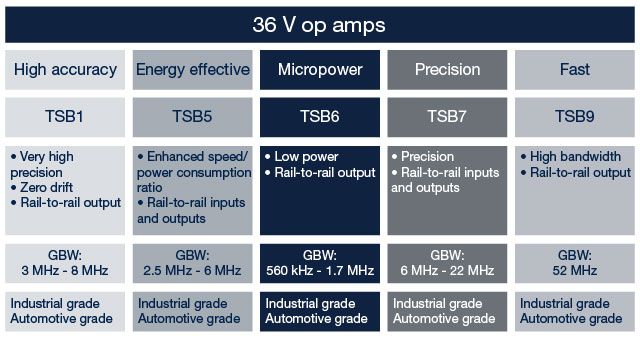

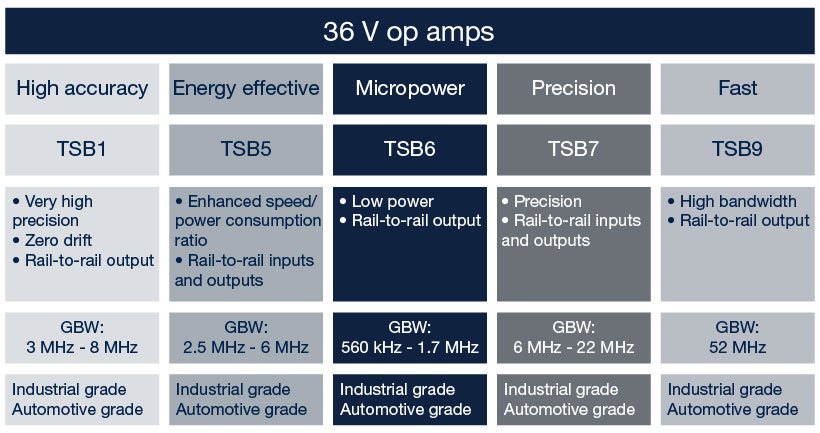

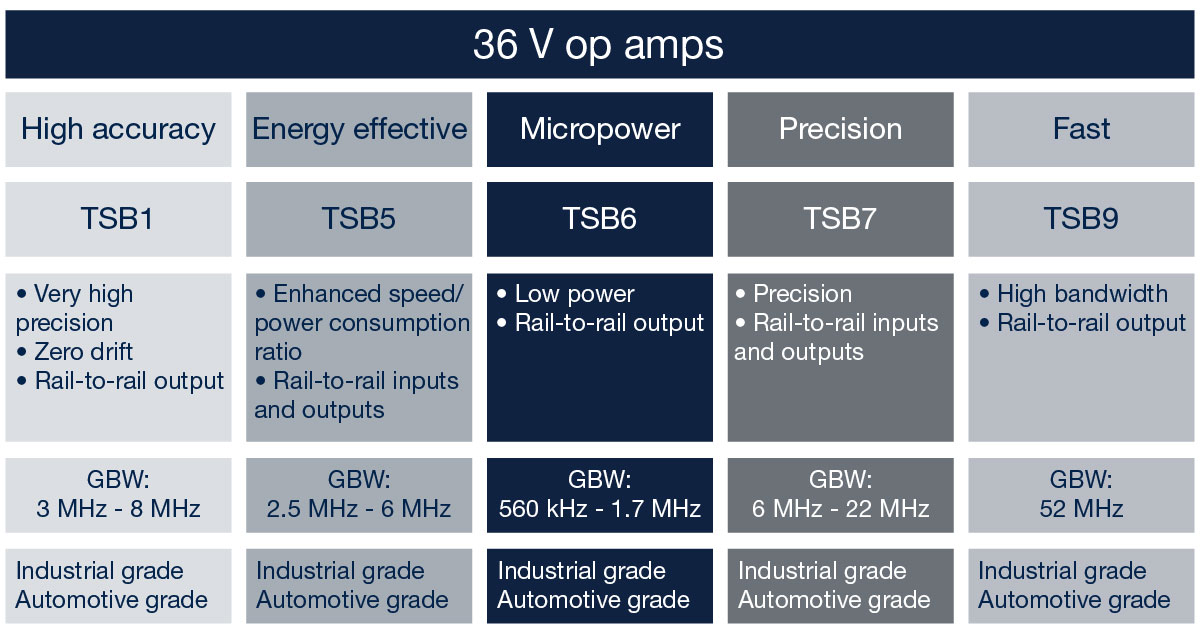

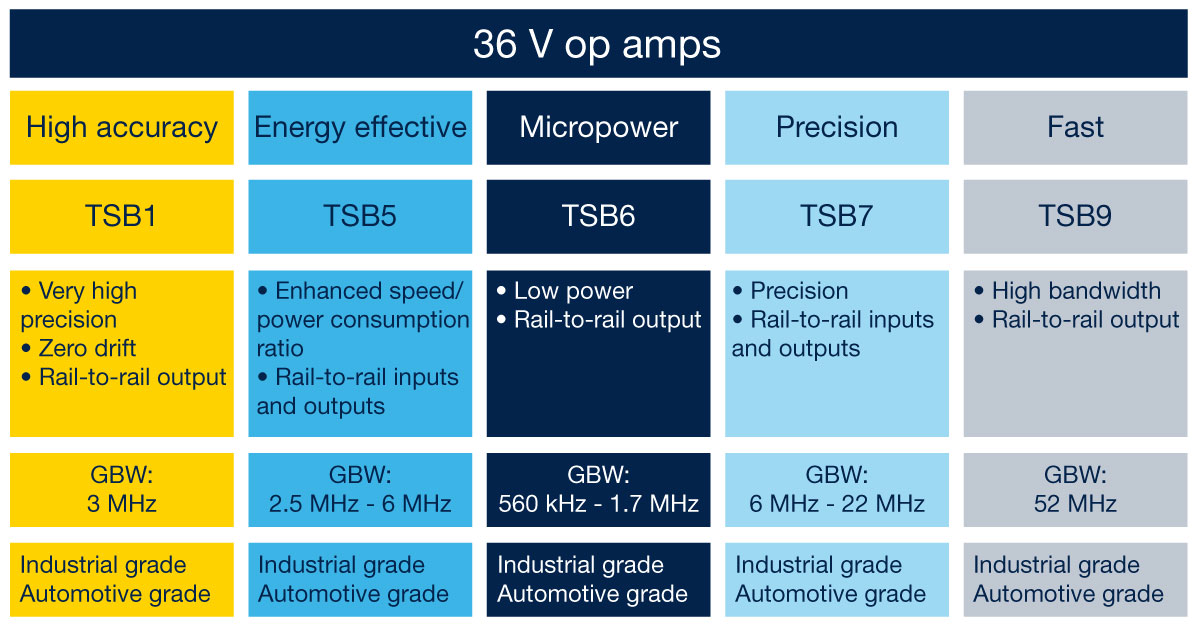

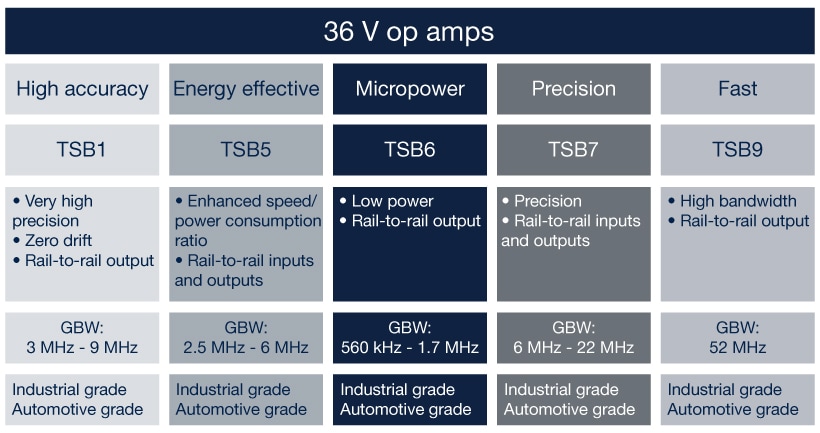

How to select the right 36 V precision op amp?
