Simplify PLC and CNC actuation with advanced power switches
and our smart plug-and-play reference design
Swift design and evaluation of high-side drivers for smart factory automation
Modern industrial automation systems require increasingly sophisticated control, reliability, and efficiency. The management of high-power loads with intricate switching demands poses considerable challenges. Our integrated ecosystem resolves these complexities by offering ultra-rugged and compact quad high-side switches, dedicated evaluation boards for each power switch, a comprehensive reference design, and essential STM32Cube software, ensuring a streamlined and efficient approach to managing demanding industrial loads.
- Simplified control of complex loads
- Seamless integration
- Certified hardware
- Comprehensive resources
- Enhanced robustness and efficiency
- Fast time-to-market
- Long-term operational stability
- Pre-validated software stack
Programmable logic control
Drivers for all types of loads (R,L,C)
Computer numerical control
Vending machines
Tailored solutions for your specific
load requirements
Precision control for applications up to 0.7 A per channel
The IPS4140HQ is a quad high-side switch designed to drive industrial loads up to 0.7 A per channel. This ultra-rugged and compact device is engineered for high reliability and is ideal for space-sensitive applications such as slim digital output (DO) modules in programmable logic controllers (PLCs).
The P-NUCLEO-IOD5A1 is a comprehensive STM32 development kit featuring the L6364Q IO-Link transceiver, the IPS4140HQ power switch, and an STM32G071RB MCU to allow fast prototyping of intelligent actuation and sensing applications.
Intelligent power switch (IPS)
IPS4140HQ
Housed in a space-efficient QFN48L package, the monolithic IPS4140HQ four-channel driver can handle loads up to 0.7 A per channel with very low RDS(on) and per-channel diagnostics.
IO-Link reference design

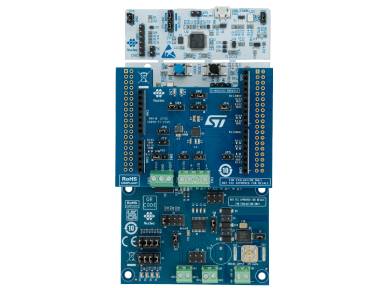

P-NUCLEO-IOD5A1 3-layer kit
This STM32 Nucleo pack provides a complete platform with the IPS4140HQ power switch, L6360Q IO-Link transceiver, and STM32G071RB MCU, enabling rapid prototyping and evaluation of intelligent IO-Link device applications.
Actuator node
X-NUCLEO-DO40A1
Industrial digital output expansion board based on IPS4140HQ for STM32 Nucleo.
Enhanced power for applications up to 1.1 A per channel
The IPS4140HQ-1 allows driving higher current loads up to 1.1 A per channel, offering a scalable solution within the same product family by extending the current driving capability for more demanding applications.
Intelligent power switch (IPS)

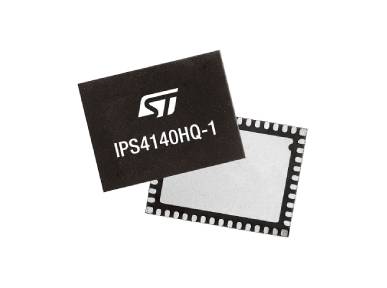

IPS4140HQ-1
The monolithic IPS4140HQ-1 four-channel driver in QFN48L package is engineered for loads up to 1.1 A per channel, with very low RDS(on) and per-channel diagnostics.
Actuator node
X-NUCLEO-DO41A1
Industrial digital output expansion board based on IPS4140HQ-1 for STM32 Nucleo
