STM32F1 - Arm Cortex-M3 Microcontrollers

The STM32F1 series offers a seamless transition from 8-bit to 32-bit microcontrollers, using the Arm^® Cortex-M3 core to deliver robust performance for industrial, medical, and consumer applications.
Operating at speeds up to 72 MHz, the series provides up to 1 Mbyte of flash memory and includes features like motor control, USB, CAN, and Ethernet MAC. With five product lines that are pin-to-pin, peripheral, and software compatible, it ensures easy integration and scalability.
The STM32F1 series, combine high performance with low-power operation at an accessible price point, supported by a straightforward architecture and user-friendly tools.

Applications

EV chargers

Industrial and factory automation

Metering

Digital Power

Product types

STM32F100 Value line

With a CPU running at 24 MHz, this product line offers up to eleven 16‑bit timers, including a motor‑control timer, and a fast 12‑bit ADC with a 1.2 µs conversion time for efficient appliance and industrial control applications.

Learn more

STM32F101

Cortex^®-M3 core running at 36 MHz. The portfolio covers from 16 Kbytes to 1 Mbyte of flash, and offers a good trade-off between performance and cost.

Learn more

STM32F102

Cortex^®-M3 core, with a maximum CPU speed of 48 MHz. It provides a USB full-speed interface and is a smart solution for applications requiring USB.

Learn more

STM32F103

Cortex^®-M3 core, with a maximum CPU speed of 72 MHz. The portfolio covers from 16 Kbytes to 1 Mbyte of flash with motor control peripherals, USB full-speed interface and CAN.

Learn more

STM32F105/107

Cortex^®-M3 core, with a maximum CPU speed of 72 MHz. Intended for applications where connectivity and real‑time performances are required such as industrial control, control panels for security applications, UPS, or home audio, this product covers from 64 to 256 Kbytes of on-chip flash memory, up to 64 Kbytes of SRAM, and 14 communication interfaces.

Learn more

Discover our portfolio

Product line	CPU (MHz)	Flash (bytes)	RAM (bytes)	Modulation
STM32F100 Value line	24	16K to 512K	4K to 32K	FSMC, 3-phase MC timer, and HDMI-CEC
STM32F10	36	16K to 1M	4K to 80K	FSMC
STM32F102	48	16K to 128K	4K to 16K	USB 2.0 FS
STM32F103	72	16K to 1M	4K to 96K	USB 2.0 FS, FSMC, CAN 2.0B, 3-phase MC timer, I²C, and SDIO
STM32F105/107	72	64K to 256K	64K	USB 2.0 FS, FSMC, CAN 2.0B, 3-phase MC timer, I²C, and Ethernet IEEE1588

Development tools for STM32F1 series

Pre-certified reference designs

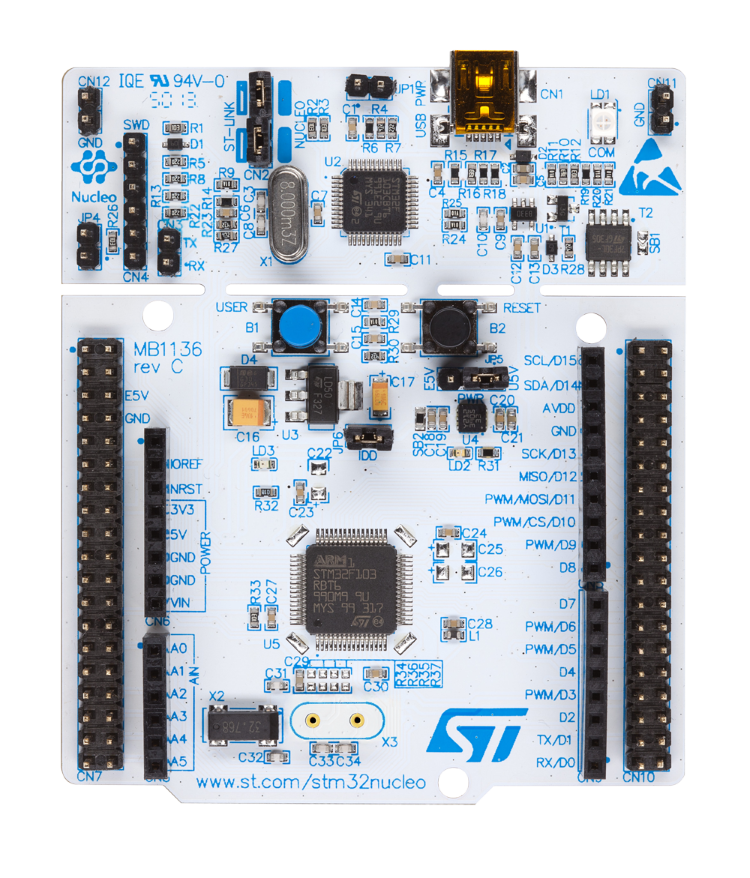

Blue and white electronic development board with a central microcontroller and multiple input/output pins.

NUCLEO-F103RB

STM32 Nucleo-64 development board with STM32F103RB MCU

Pre-certified reference designs

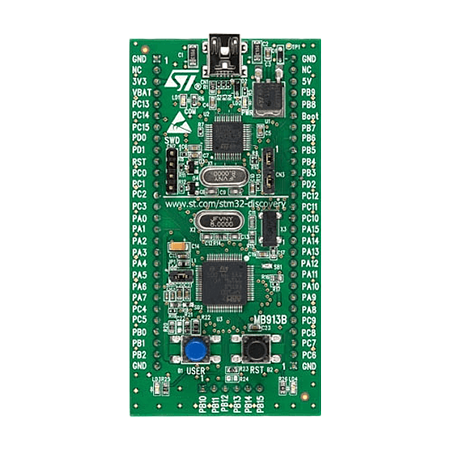

STM32VLDISCOVERY

Discovery kit with STM32F100RB MCU

Benefits

Good performance

The STM32F1 series features industry‑leading 32-bit microcontrollers powered by the Arm^® Cortex-M3 core, offering speeds up to 72 MHz for robust application support.

Versatile integration

With comprehensive features including motor control, USB, CAN, and Ethernet MAC, the STM32F1 series provides developers with adaptable solutions for diverse industrial, medical, and consumer applications.

Accessible

Designed with a straightforward architecture, the STM32F1 series combines high performance with low-power operation at an accessible price point, ensuring ease of integration and scalability across its pin‑to-pin compatible product lines.
