Product overview
概要

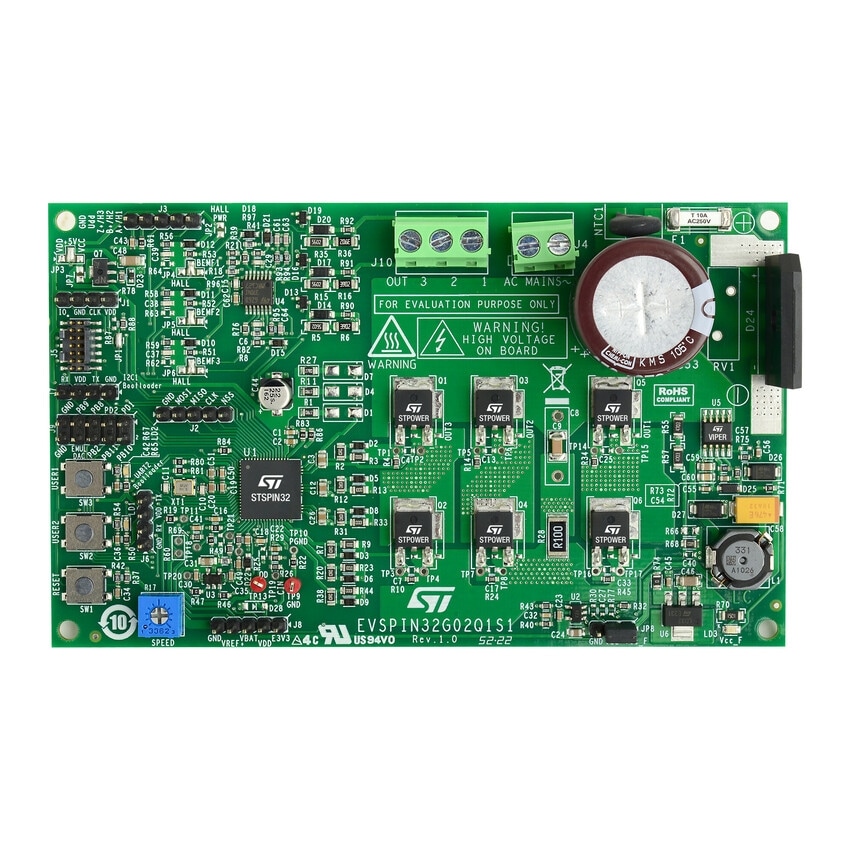

The EVSPIN32G02Q1S1 board is a 3-phase complete inverter based on the STSPIN32G0251 controller, which embeds a 3‑phase 250 V gate driver and a Cortex®-M0+ STM32 MCU. The power stage features STD17NF25 MOSFETs, but can be populated with any IGBT or Power MOSFET in DPAK or powerFLAT 8x8 HV package. The board has a single-shunt sensing topology, and both FOC and 6‑step control algorithms in either sensored or sensorless mode can be implemented. This allows driving permanent magnet synchronous motors (PMSMs) and brushless DC (BLDC) motors.
The evaluation board is compatible with a wide range input voltage from 15 VAC (20 VDC) to 120 VAC (170 VDC), and includes a power supply stage with the VIPER013BLS in buck configuration to generate +12 V and +3.3 V supply voltage required by the application.
Debug and configuration of firmware can be performed with standard STM32 tools through the STLINK debugger. SWD and UART TX‑RX connectors are also available.
-
All features
- Input voltage from 15 VAC (20 VDC) to 120 VAC (170 VDC)
- Suitable for application up to 300 W
- STD17NF25 MOSFETs power stage featuring:
V R - Overcurrent threshold set to 4 Apeak
- Dual footprint for IGBT/MOSFET package:
DPAK or PowerFlat 8x8 HV - Single-shunt current sensing, suitable for:
Sensored or sensorless 6-step algorithm Sensored or sensorless single-shunt vector (FOC) algorithm - Smart shutdown overcurrent protection
- Digital Hall sensors and encoder input
- Bus voltage sensing
- 12 V VCC and 3.3 V VDD supplies
- External connection through STLINK-V3SET
- Easy user interface with buttons and trimmer
- RoHS compliant
