battery management system

L9963E chip for battery management systems

Automotive chip for battery management applications with daisy chain up to 31 devices

A Li-ion battery monitoring and balancing chip, the L9963E is designed for high-reliability automotive applications and energy storage systems. Up to 14 stacked battery cells can be monitored to meet the requirements of 48 V and higher voltage systems as it is possible to daisy chain multiple (up to 31) devices ensuring high-speed, low EMI, long distance, and reliable data transmissions. In addition to a fully redundant cell measurement path, with ADC Swap, for enhanced safety and Limp Home functionality, the L9963E offers an intelligent diagnostic routine providing automatic failure validation.

Download datasheet Get samples




Key features of L9963E

  • Measures 4 to 14 cells in series
  • On board Coulomb counter supporting pack overcurrent detection in both ignition on and off states
  • 16-bit voltage ADC with maximum error of ±2 mV in 0 to 4.3 V range
  • 2.66 Mbps isolated serial communication with dual access ring capability


  • Less than 4 µs latency between start of conversion of the 1 and the 31st device in a chain
  • 200 mA passive internal balancing current for each cell
  • Two 5 V regulators supporting external load
  • 9 GPIOs, with up to 7 analog inputs for NTC sensing

Application examples


Automotive

Commercial energy storage system

eBike, eScooter

Home energy storage system

UPS



How to test and prototype with L9963E

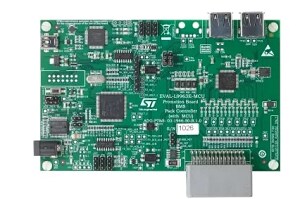

EVAL-L9963E-MCU: L9963E BMS IC evaluation board
Evaluation board

The EVAL-L9963E-MCU is a hardware tool for evaluation of L9963E, automotive chip for battery management applications. It can be used for the development of a 48 V battery management system (BMS) or as lower stage of a distributed BMS (depending on total battery voltage. Additional stages can be added thanks to EVALL9963E-NDS).

Download databrief Order now




AEK-POW-BMS63EN: battery management system module based on L9963E
Evaluation board

The AEK-POW-BMS63EN is a battery management system (BMS) evaluation board that can handle from 1 to 31 Li-ion battery nodes. Each battery node manages from 4 to 14 battery cells, for a voltage range between 48 V and 800 V.

Download databrief Order now






STSW-L9963E: L9963E evaluation Graphical User Interface (GUI)
Software

The STSW-L9963E is the PC Graphical User Interface (GUI) dedicated to set and control EVAL-L9963E-MCU hardware tool for evaluation of L9963E automotive chip for battery management applications.

Download databrief Get software



Automotive general purpose SPI to isolated SPI transceiver
Product

L9963T is a general purpose SPI to isolated SPI transceiver intended to create a communication bridge between devices located into different voltage domains. L9963T is able to transfer communication data incoming from a classical 4-wire based SPI interface to a 2-wire isolated interface (and viceversa).

Download datasheet Order now





Overcoming design challenges for battery management systems
On-demand webinar

Become familiar with the basic concepts of BMS in various applications

Webinar overview
  • Basic concepts of battery management systems in various applications,
  • Measuring a battery cell’s State of Charge (SoC) and State of Health (SoH) to better optimize their performance,
  • Overview of ST’s portfolio and developer resources for designing a state-of-the-art BMS,
  • Pros and cons of various topologies and design choices for typical use cases.
Watch the webinar now
