X-NUCLEO-SNK1M1

量産中
Design Win

USB Type-C Power Delivery Sink expansion board based on TCPP01-M12 for STM32 Nucleo

データブリーフのダウンロード Order Direct
概要
サンプル & 購入
ソリューション
ドキュメント
CADリソース
ツール & ソフトウェア
品質 & 信頼性
はじめる
Partner products
Sales Briefcase

製品概要

概要

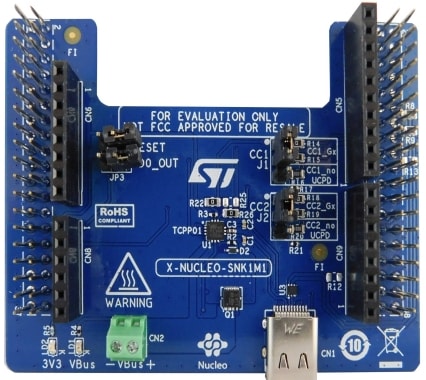

The X-NUCLEO-SNK1M1 expansion board allows evaluating the features of TCPP01-M12 and the USB Type-C overvoltage protection for VBUS and CC lines suitable for Sink applications.

The expansion board is designed to be stacked on top of any STM32 Nucleo-64 development board exploiting the characteristics of the USB Type-C and Power Delivery (UCPD) peripheral embedded in their microcontrollers.

It can also be stacked on other STM32 Nucleo development boards not supporting the UCPD peripheral to demonstrate the Type-C basic operations (attach, detach and power supply current capability recognition).

The X-NUCLEO-SNK1M1 provides an effective demonstration of the dead battery operation, thanks to the integrated ST715PU33R LDO linear regulator that supplies the connected STM32 Nucleo development board when a Source is attached via a USB Type-C connector.

The X-NUCLEO-SNK1M1 is compliant with the latest USB Type-C and Power Delivery specifications and is also USB-IF certified as a 100 W solution supporting Programmable Power Supply (PPS) function.

The companion software package (X-CUBE-TCPP) contains the application examples for development boards embedding UCPD-based microcontrollers (NUCLEO-G071RB and NUCLEO-G474RE) and for non-UCPD ones (NUCLEO-L412RB-P).

  • 特徴

    • On-board TCPP01-M12 protection for USB Type-C and PD Sink applications
    • Compliant with the latest USB Type-C and Power delivery specification, including the Programmable Power Supply (PPS) feature
    • USB-IF certified (Test ID certification: 5205)
    • 100 W-rated solution
    • 6 V overvoltage protection (OVP) on CC lines against short-to-VBUS when the connector is unplugged
    • Up to 22 V adjustable overvoltage protection (OVP) on VBUS line against charger failure
    • Surge protection (8/20 µs) and system-level ESD protection on VBUS
    • Common mode filter and ESD protection on USB 2.0 High Speed data lines
    • System level ESD protection on CC lines as per IEC61000-4-2 level 4 (±8 kV contact discharge)
    • Low power mode for battery operation allowing zero current consumption when no cable is attached
    • Integrated dead battery management when the device battery is fully depleted
    • Overtemperature protection (OTP)
    • RoHS compliant
