FP-SNS-MOTENVWB1

量産中
Design Win

STM32Cube function pack for STM32WB with BLE connectivity and environmental and motion sensors

ソフトウェア入手 データブリーフのダウンロード
概要
サンプル & 購入
ソリューション
ドキュメント
ツール & ソフトウェア
品質 & 信頼性
Partner products
Sales Briefcase
はじめる

製品概要

概要

The FP-SNS-MOTENVWB1 function pack for STM32Cube lets you connect your IoT node to a smartphone via Bluetooth® Low Energy (BLE) and use a suitable Android or iOS application such as the STBLESensor app to view real-time motion, environmental (temperature, pressure and relative humidity), and Time-of-Flight sensor data.

The package also enables advanced functions such as the sensor data fusion, accelerometer-based real-time activity recognition, carry position, gesture recognition, pedometer, motion intensity, compass, and object distance.

Together with the suggested combination of STM32WB and other ST devices, it can be used to develop specific wearable and environmental applications, or smart things applications in general.

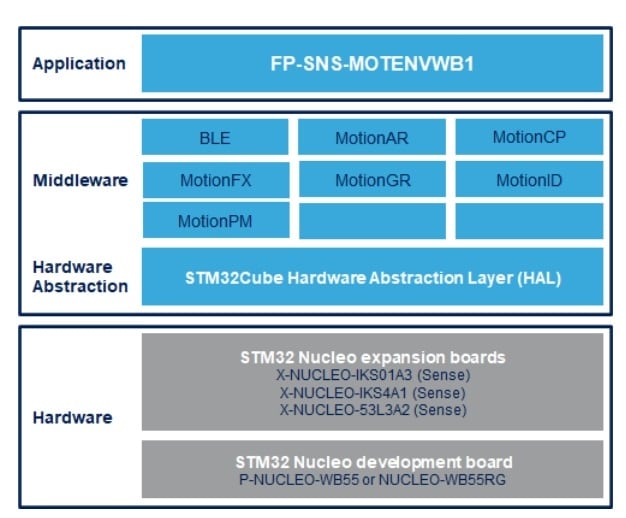

The software runs on the STM32WB microcontroller and includes all the necessary drivers to recognize the devices on the STM32WB55 Nucleo development board (P-NUCLEO-WB55), X-NUCLEO-IKS01A3 and X-NUCLEO-53L3A2 (optional) expansion board.

  • 特徴

    • Complete firmware to develop an IoT node with Bluetooth® Low Energy connectivity, environmental, motion, and Time-of-Flight sensors
    • Middleware libraries for sensor data fusion, accelerometer-based real-time activity recognition, carry position, gesture recognition, motion intensity recognition, and pedometer
    • Compatible with STBLESensor applications for Android/iOS to perform sensor data reading, motion algorithm feature demo, and firmware update (FOTA)
    • Sample implementation available for the X-NUCLEO-IKS01A3 and X-NUCLEO-53L3A2 (optional) connected to a P-NUCLEO-WB55
    • Easy portability across different MCU families, thanks to STM32Cube

ソフトウェア入手

All tools & software

    • 製品型番
      ステータス
      概要
      タイプ
      サプライヤ

      P-NUCLEO-WB55

      量産中

      Bluetooth 5 and 802.15.4 Nucleo Pack including USB dongle and Nucleo-64 with STM32WB55 MCUs, supports Arduino Uno V3 and ST morpho connectivity

      STM32 Nucleo Boards ST
      P-NUCLEO-WB55

      概要:

      Bluetooth 5 and 802.15.4 Nucleo Pack including USB dongle and Nucleo-64 with STM32WB55 MCUs, supports Arduino Uno V3 and ST morpho connectivity

      X-NUCLEO-53L3A2

      量産中

      Multi-targets ranging sensor expansion board based on VL53L3CX for STM32 Nucleo

      イメージングIC用評価ボード ST
      X-NUCLEO-53L3A2

      概要:

      Multi-targets ranging sensor expansion board based on VL53L3CX for STM32 Nucleo
    • 製品型番
      ステータス
      概要
      タイプ
      サプライヤ

      X-NUCLEO-IKS01A3

      量産中

      STM32 Nucleoボード向けモーションMEMS & 環境センサ拡張ボード

      STM32 ODE Sense HW ST
      X-NUCLEO-IKS01A3

      概要:

      STM32 Nucleoボード向けモーションMEMS & 環境センサ拡張ボード
    • 製品型番
      ステータス
      概要
      タイプ
      サプライヤ

      STBLESensor

      量産中

      BLE sensor application for Android and iOS

      ワイヤレス・コネクティビティ・ソフトウェア ST
      STBLESensor

      概要:

      BLE sensor application for Android and iOS
