製品概要
概要
The STSW-DO40G4 firmware runs on the NUCLEO-G431RB development board and allows controlling the X-NUCLEO-DO40A1 and X-NUCLEO-DO41A1 expansion boards using the STSW-IFAPGUI graphical user interface.
The STSW-DO40G4 contains the software routines that enable the USB-based communication between the NUCLEO-G431RB and the system where the STSW-IFAPGUI runs, and the control of the X-NUCLEO-DO40A1 or X-NUCLEO-DO41A1 expansion board.
The firmware can control a single expansion board (X-NUCLEO-DO40A1 or X-NUCLEO-DO41A1).

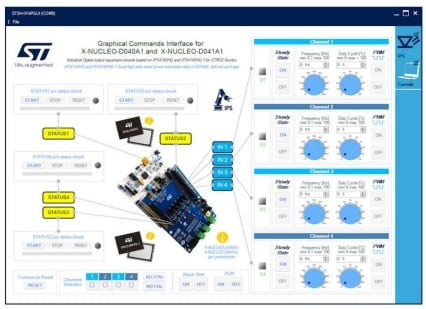

The STSW-IFAPGUI is based on a common engine and several plug-ins designed to communicate through the USB connection with the application layer running on the NUCLEO-G431RB development board stacked with the expansion board.
-
特徴
- Full control of the X-NUCLEO-DO40A1 and X-NUCLEO-DO41A1 expansion boards via the STSW-IFAPGUI graphical user interface
- Control of:
- Output channel switching frequency and duty cycle configuration
- Visualization of per-channel thermal shutdown diagnostic
