  • The STEVAL-MKSBOX1V1 (SensorTile.box) is a ready-to-use wireless IoT and wearable sensor box kit designed to help simplify app development based on remote motion and environmental sensor data.

    The kit firmware provides a range of development modes: from Entry Mode for developers with little or no programming skills, to Pro Mode where users can load custom firmware on the SensorTile.box STM32 microcontroller.

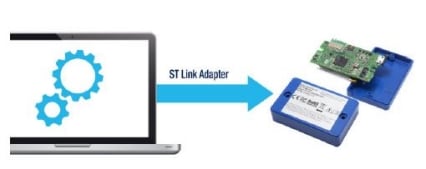

    The STSW-MKSBOX1_BL firmware allows you to restore the ability to upgrade firmware over the air (FOTA) in the event that FOTA functionality is overwritten or deleted due to a custom firmware upload.

    主な特徴

    • Restores FOTA functionality deleted by custom firmware.
    • Requires the following:
      • STEVAL-MKSBOX1V1 (SensorTile.box) board
      • Mini USB B to USB-B cable
      • Micro USB-B to USB-B cable
      • ST-LINK/V2 programmer with correct driver installed on PC
      • STM32 ST-LINK Utility (STSW-LINK004) software installed on PC
      • Smartphone with ST BLE Sensor app installed
      • JTAG adapter board V1.0: adapter from JTAG20 to STDC14 connector
      • Flat cable to connect JTAG adapter to SensorTile.box
      • BLEFOTA_BL.bin firmware file

ソフトウェア入手

推奨コンテンツ

開発ツール・ハードウェア

    • 製品型番

      ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32

    • 製品型番

      STM32 ST-LINK utility

      ST-LINK, ST-LINK/V2, ST-LINK/V2-1, STLINK-V3 boards firmware upgrade

      ST-LINK/V2-1 USB driver on Windows Vista, 7 and 8

      ST-LINK, ST-LINK/V2, ST-LINK/V2-1 USB driver signed for Windows7, Windows8, Windows10

00 ファイルがダウンロード用に選択されています

技術文書

    • 概要 バージョン サイズ アクション
      DB4001
      SensorTile.box firmware OTA function restore
      2.0
      2.25 MB
      PDF
      DB4001

      SensorTile.box firmware OTA function restore
