STSW-OUT15F4

量産中
Design Win

Demonstration firmware for NUCLEO-F401RE enabling STSW-IFAPGUI on X-NUCLEO-OUT15A1 expansion board

ソフトウェア入手 データブリーフのダウンロード
概要
サンプル & 購入
ソリューション
ドキュメント
ツール & ソフトウェア
品質 & 信頼性
Partner products
Sales Briefcase
はじめる

製品概要

概要

The STSW-OUT15F4 firmware runs on the NUCLEO-F401RE development board and allows controlling the X-NUCLEO-OUT15A1 expansion board using the STSW-IFAPGUI graphical user interface.

The STSW-OUT15F4 contains the software routines that enable the USB-based communication between the NUCLEO-F401RE and the system where the STSW-IFAPGUI runs, and the control of the X-NUCLEO-OUT15A1.

The firmware can control a single X-NUCLEO-OUT15A1 expansion board.

The STSW-IFAPGUI is based on a common engine and several plug-ins designed to communicate through the USB connection with the application layer running on the NUCLEO-F401RE development board stacked with the expansion board.

  • 特徴

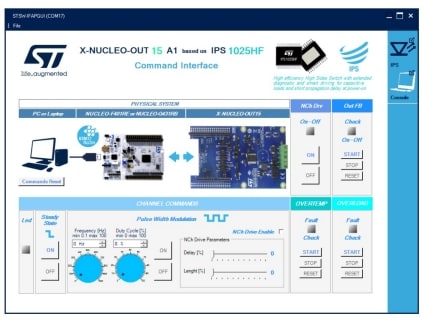

    • Full control of the X-NUCLEO-OUT15A1 expansion board via the STSW-IFAPGUI graphical user interface
    • Control of:channel applicationsoutput channel switching frequency and duty cycle configurationvisualization of diagnostic signals (overload and overtemperature diagnostic) and output feedbackoutput fast discharge circuitry (Nch-DRV)

ソフトウェア入手

All tools & software

    • 製品型番
      ステータス
      概要
      タイプ
      サプライヤ

      STSW-IFAPGUI

      量産中

      Graphical user interface for the industrial IPS and IO-Link transceiver evaluation boards based on STM32 Nucleo

      評価ツール用ソフトウェア --
      STSW-IFAPGUI

      概要:

      Graphical user interface for the industrial IPS and IO-Link transceiver evaluation boards based on STM32 Nucleo
