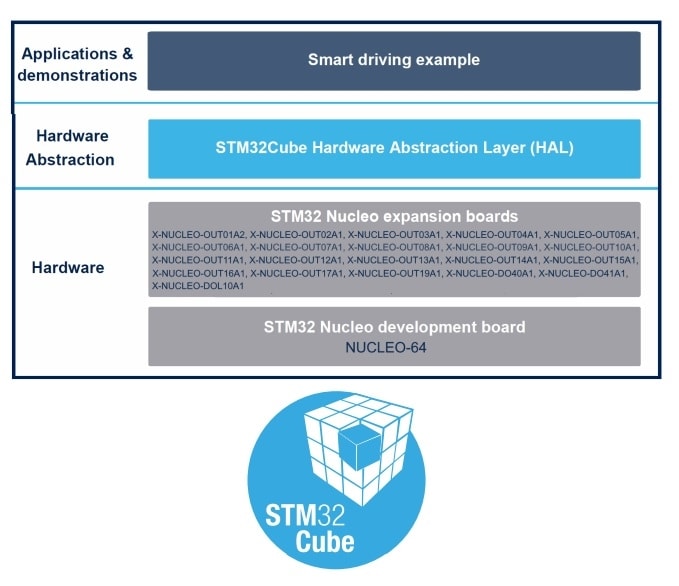

The X-CUBE-IPS expansion software package for STM32Cube runs on the STM32 and includes drivers that control the industrial intelligent power switches (IPS) mounted on the following expansion boards: X-NUCLEO-OUT03A1, two-channel, high-side digital output based on IPS2050H, X-NUCLEO-OUT04A1, two-channel, high-side digital output based on IPS2050H-32, X-NUCLEO-OUT05A1, one-channel, high-side digital output based on IPS1025H, X-NUCLEO-OUT06A1, one-channel, high-side digital output based on IPS1025H-32, and X-NUCLEO-OUT15A1, one-channel, high-side digital output based on IPS1025HF.

This software allows controlling the output channels of the expansion boards when connected to a NUCLEO-F401RE or NUCLEO-G431RB development board.

It is possible to build systems with multiple boards stacked to evaluate multichannel digital output modules, even with different output current capabilities.

Each output channel can be switched into the steady-state mode or PWM mode.

In the PWM mode, the software allows you to program the expansion boards to be switched on and off using a specific frequency and duty cycle.

The software included in the package can be used in three integrated development environments (IDEs): IAR, Keil®, and STM32CubeIDE.

  • 特徴

    • Software package to build applications using the expansion boards that mount the industrial intelligent power switches (IPS)
    • Includes ready-to-use firmware to evaluate easily the driving and diagnostic capabilities of the IPS products for industrial loads
    • Support for NUCLEO-F401RE and NUCLEO-G431RB development boards
    • GPIOs, PWMs, and IRQs
    • Fault/diagnostics interrupt handling
    • Easy portability across different MCU families, thanks to STM32Cube
    • Free, user-friendly license terms

ソフトウェア入手

All tools & software

    • 製品型番
      ステータス
      概要
      タイプ
      サプライヤ

      STM32CubeF4

      量産中

      STM32Cube MCU Package for STM32F4 series (HAL, Low-Layer APIs and CMSIS, USB, TCP/IP, File system, RTOS, Graphic - and examples running on ST boards)

      STM32Cube MCU/MPUパッケージ ST
      STM32CubeF4

      概要:

      STM32Cube MCU Package for STM32F4 series (HAL, Low-Layer APIs and CMSIS, USB, TCP/IP, File system, RTOS, Graphic - and examples running on ST boards)

      STM32CubeG4

      量産中

      STM32Cube MCU Package for STM32G4 series (HAL, Low-Layer APIs and CMSIS, USB, File system, RTOS, Graphic - and examples running on ST boards)

      STM32Cube MCU/MPUパッケージ ST
      STM32CubeG4

      概要:

      STM32Cube MCU Package for STM32G4 series (HAL, Low-Layer APIs and CMSIS, USB, File system, RTOS, Graphic - and examples running on ST boards)
    • 製品型番
      ステータス
      概要
      タイプ
      サプライヤ

      X-NUCLEO-OUT03A1

      量産中

      Industrial digital output expansion board based on IPS2050H for STM32 Nucleo

      STM32 ODE Move-Actuate HW ST
      X-NUCLEO-OUT03A1

      概要:

      Industrial digital output expansion board based on IPS2050H for STM32 Nucleo

      X-NUCLEO-OUT04A1

      量産中

      Industrial digital output expansion board based on IPS2050H-32 for STM32 Nucleo

      STM32 ODE Move-Actuate HW ST
      X-NUCLEO-OUT04A1

      概要:

      Industrial digital output expansion board based on IPS2050H-32 for STM32 Nucleo

      X-NUCLEO-OUT05A1

      量産中

      Industrial digital output expansion board based on IPS1025H for STM32 Nucleo

      STM32 ODE Move-Actuate HW ST
      X-NUCLEO-OUT05A1

      概要:

      Industrial digital output expansion board based on IPS1025H for STM32 Nucleo

      X-NUCLEO-OUT06A1

      量産中

      Industrial digital output expansion board based on IPS1025H-32 for STM32 Nucleo

      STM32 ODE Move-Actuate HW ST
      X-NUCLEO-OUT06A1

      概要:

      Industrial digital output expansion board based on IPS1025H-32 for STM32 Nucleo

      X-NUCLEO-OUT15A1

      量産中

      Industrial digital output expansion board based on IPS1025HF for STM32 Nucleo

      STM32 ODE Move-Actuate HW ST
      X-NUCLEO-OUT15A1

      概要:

      Industrial digital output expansion board based on IPS1025HF for STM32 Nucleo
