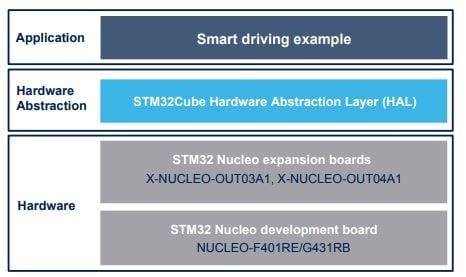

The X-CUBE-OUT3 software package expands STM32Cube functionality. It runs on the STM32 microcontroller and includes a driver controlling the IPS2050H or the IPS2050H-32 (dual-channel high-side switches for industrial applications) mounted on an X-NUCLEO-OUT03A1 or X-NUCLEO-OUT4A1 expansion board. This software allows controlling the output channels of the expansion boards when connected to a NUCLEO-F401RE or NUCLEO-G431RB development board.
It is possible to build a system with up to four stacked X-NUCLEO-OUT03A1 and/or X-NUCLEO-OUT04A1 expansion boards to evaluate an up to eight-channel digital output module.
The two channels of each board can be switched on or off independently in steady-state mode or in PWM mode.
In PWM mode, the software allows you to program the expansion boards to be switched on and off using a specific frequency in the 0-100 Hz range (0.1 Hz resolution), and specific duty cycle in the 0-100% range (1% resolution). These values can also be different for the two channels.
The software included in the package can be used in three integrated development environments (IDEs): IAR, KEIL and STM32CubeIDE.
  • 特徴

    • Software package to build applications for IPS2050H and IPS2050H-32
    • High-side switch with extended diagnostics and smart driving for capacitive loads
    • Ready-to-use firmware to easily evaluate the driving and diagnostic capabilities of IPS2050H and IPS2050H-32 with industrial loads
    • Implementation on X-NUCLEO-OUT03A1 or X-NUCLEO-OUT04A1 expansion boards
    • NUCLEO-F401RE or NUCLEO-G431RB development boards supported
    • Driver library to control IPS2050H and IPS2050H-32
    • GPIOs, PWMs and IRQs
    • Fault/Diagnostics interrupt handling
    • Easy portability across different MCU families, thanks to STM32Cube
    • Free, user-friendly license terms.

ソフトウェア入手

All tools & software

    • 製品型番
      ステータス
      概要
      タイプ
      サプライヤ

      X-NUCLEO-OUT03A1

      量産中

      Industrial digital output expansion board based on IPS2050H for STM32 Nucleo

      STM32 ODE Move-Actuate HW ST
      X-NUCLEO-OUT03A1

      概要:

      Industrial digital output expansion board based on IPS2050H for STM32 Nucleo

      X-NUCLEO-OUT04A1

      量産中

      Industrial digital output expansion board based on IPS2050H-32 for STM32 Nucleo

      STM32 ODE Move-Actuate HW ST
      X-NUCLEO-OUT04A1

      概要:

      Industrial digital output expansion board based on IPS2050H-32 for STM32 Nucleo
