  • The X-CUBE-SFXS2LP1 expansion software package for STM32Cube runs on the STM32 and includes the drivers for S2-LP and the library for the Sigfox™ proprietary protocol.

    This software together with the suggested combination of STM32 and S2-LP device can be used, for example, to develop applications for smart home/building and smart cities, agriculture, parking, lighting, etc.

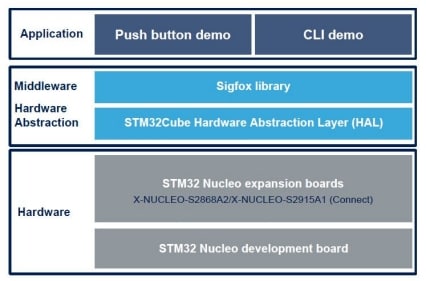

    The expansion is built on STM32Cube software technology to ease portability across different STM32 microcontrollers.
    The software comes with a sample implementation of the drivers running on the X-NUCLEO-S2868A1 expansion board connected to a NUCLEO-L053R8, NUCLEO-L152RE or NUCLEO-L476RG development board.

    主な特徴

    • Complete software to build applications using Sigfox™ long range wireless area network running on the S2-LP high performance ultra-low power RF transceiver
    • S2-LP Sigfox™ library with a complete set of APIs to develop embedded applications
    • Compatible with the STSW-S2LP-SFX-DK graphical user interface (GUI) to register end-device to Sigfox™ network and get ID (Unique Device ID)/PAC (Port Authorization code) /Key from the pool assigned to ST devices
    • GUI PC application available as interactive interface to transmit messages to the Sigfox™ network
    • Sample implementation available on the X-NUCLEO-S2868A1 expansion board connected to a NUCLEO-L053R8, NUCLEO-L152RE or NUCLEO-L476RG development board
    • ID/PAC/Key stored in internal MCU flash or external EEPROM
    • Easy portability across different MCU families, thanks to STM32Cube
    • Free, user-friendly license terms
