製品概要
概要

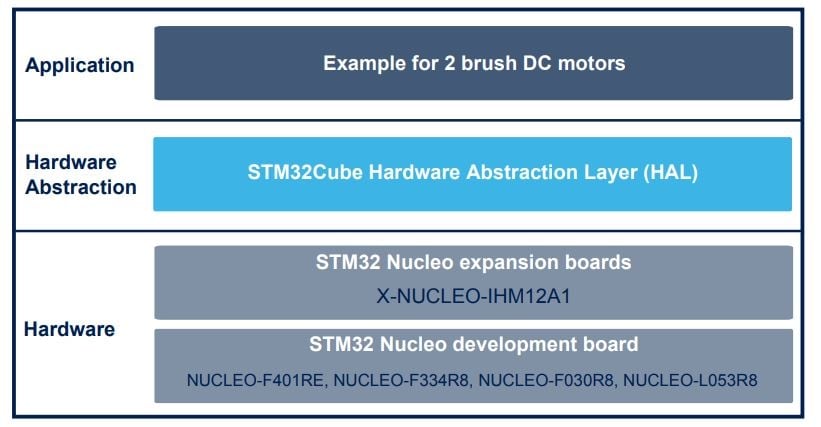

The X-CUBE-SPN12 expansion software package for STM32Cube runs on the STM32 Nucleo providing management of STSPIN240 to control low voltage dual brush DC motors. The expansion is built on STM32Cube software technology to ease portability across different STM32 microcontrollers.
It is compatible with the NUCLEO-F401RE, NUCLEO-F334R8, NUCLEO-F030R8 or NUCLEO-L053R8 development boards connected to an X-NUCLEO-IHM12A1 expansion board.
The software comes with a sample implementation driving two bidirectional low voltage dual brush DC motors.
-
特徴
- Driver layer for the full management of the STSPIN240 low voltage dual brush DC motor driver
- Sample implementation to control up to two bidirectional brush DC motors
- Easy portability across different MCU families, thanks to STM32Cube
- Free, user-friendly license terms
