製品概要
概要

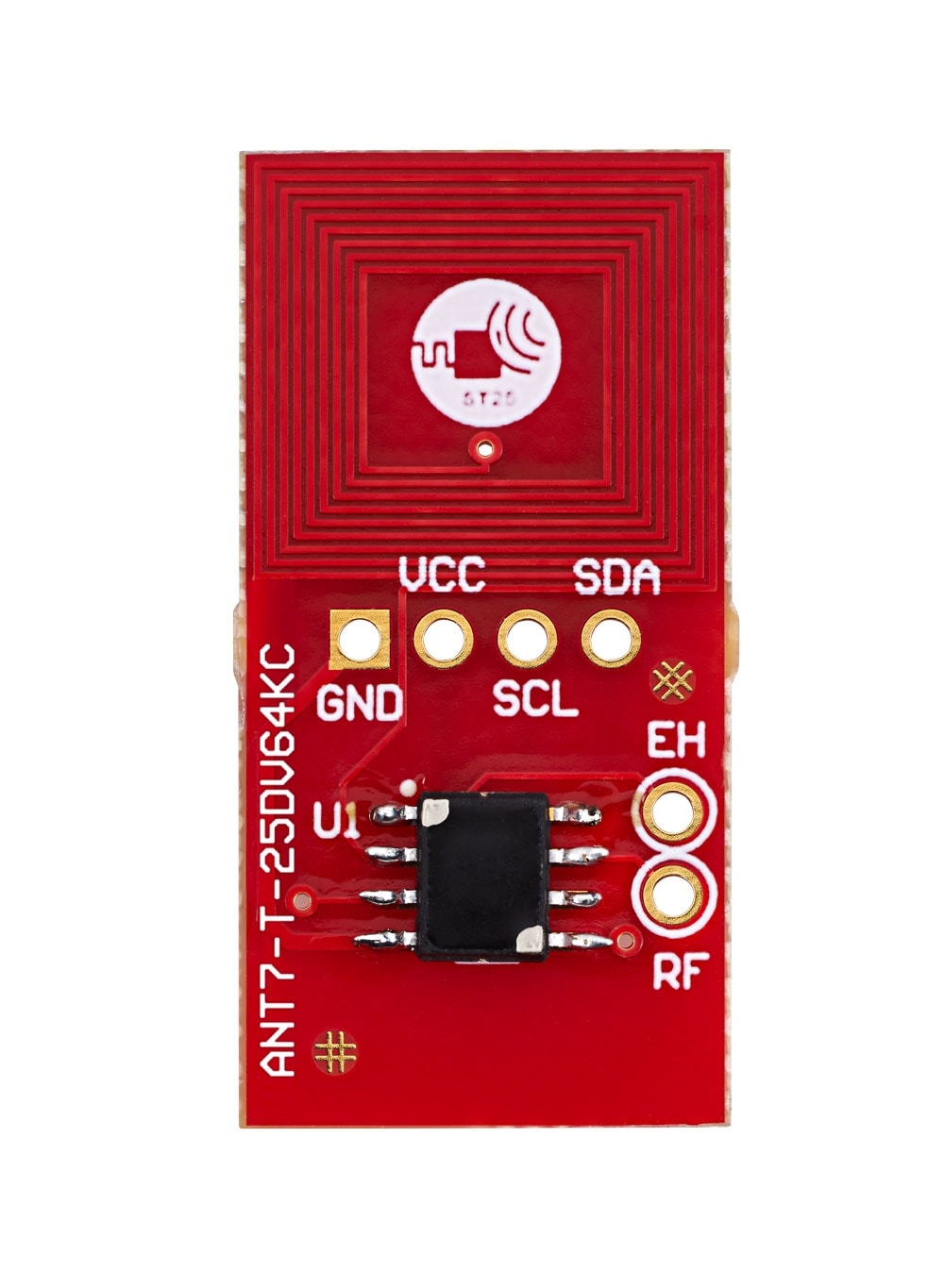

The ANT7-T-25DV64KC antenna reference board is a ready to use PCB featuring an ST25DV64KC connected to a 14 mm x 14 mm, 13.56 MHz etched RF double layer antenna on one side, and to an I²C bus on the other side.
This evaluation board allows system designers to evaluate the ST25DV64KC performance and capabilities, and to get started with their design.
To demonstrate the energy harvesting function, the ANT7-T-25DV64KC can be used in conjunction with any ST25R NFC reader evaluation board.
The board design and the Gerber files can be downloaded from www.st.com.
If externally powered, supply must be safety extra-low voltage (SELV), according to EN60950-1 (< 5 V, < 15 W). The power supply is classified ES1 (electrical energy source class 1), PS1 (electrical power source class 1), according to EN62368-1.
-
All features
- Ready to use printed circuit board including:
ST25DV64KC dual interface EEPROM 14 mm x 14 mm, 13.56 MHz dual layer etched antenna I²C test points RF event configurable general purpose output (GPO) Analog energy harvesting (EH) output
